M2401CG / M2402CG / M2403CG / M2404CG Surface Mount 10G Base-T Transformer
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
M2401CG / M2402CG / M2403CG / M2404CG Surface Mount 10G Base-T Transformer
10G BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS:
- Meets IEEE 802.3an Standards
- RoHS Compliant
- 10G Base-T, Surface Mount Type,Open Header
- Operating temperature range: 0 to 70
Electrical Specifications @25:
| Part number | M2401CG |
| OCL (uH) @100KHz, 0.1v | 120uH |
| Turn Ratio | 1CT:1CT |
| Size | 13.6*15*6.6mm |
| Core | 8 cores |
| Type | Surface Mount |
| Port | Single port |
| Speed | 10G base |
| RoHS | RoHS Compliant |
| Operating ternperature rang | 0 ~ 70 |

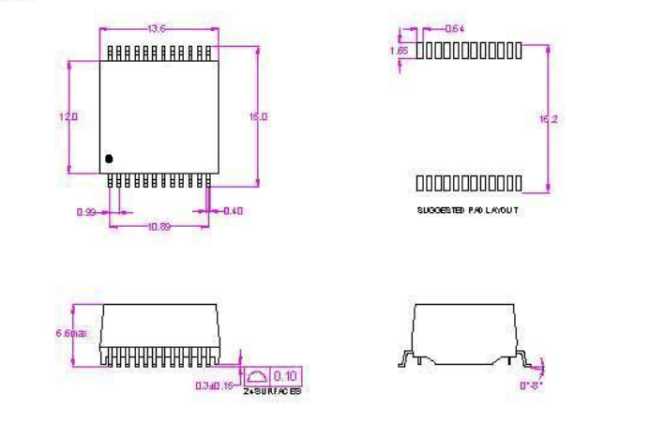

Dimensions:
