FA2924-AL Flyback Transformer For Silicon LaboratoriesSi3402 PD Controllers

Description:

1.Designed for Power over Ethernet PD controllers for applica-tions up to 15 Watts.

2.Operates in continuous conduction mode with 36 – 72 V input

3.1500 Vrms, one minute isolation between primary and secondary

Core material Ferrite

Terminations RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

Weight 6.57 – 6.71 g

Ambient temperature –40°C to +85°C

Storage temperature Component: –40°C to +85°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

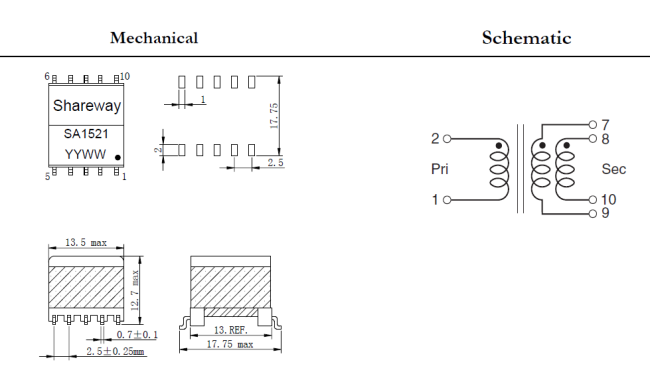

Dimensions:
