1.5-23uH Common Mode Choke MOX-HTI-2300-1R8 Long Lifespan For DC/DC Converters
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
MOX-HTI-2300-1R8 1.5 to 23uH Common Mode Choke For DC/DC converters
Description:
| PART NUMBER | INDUCTANCE ±15% @ 1KHZ |
IDC (A) |
L (μH) ±15% @ IRATED |
DCR (Ω) MAX. |
DIMENSION A |
DIMENSION B |
DIMENSION C |
| MOX-HTI-2300-1R8 | 1.8 | 34.6 | 1.5 | 0.003 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-2R7 | 2.7 | 31.6 | 2.2 | 0.003 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-3R9 | 3.9 | 29.2 | 3.1 | 0.004 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-4R7 | 4.7 | 27.3 | 3.7 | 0.004 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-5R6 | 5.6 | 25.8 | 4.3 | 0.005 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-6R8 | 6.8 | 24.5 | 5.1 | 0.005 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-8R2 | 8.2 | 24.3 | 6.0 | 0.005 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-100 | 10 | 23.3 | 7.2 | 0.006 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-120 | 12 | 22.4 | 8.5 | 0.006 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-150 | 15 | 20.8 | 10.3 | 0.007 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-180 | 18 | 20.2 | 12.2 | 0.007 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-220 | 22 | 19.0 | 14.5 | 0.008 | 0.56 | 1.18 | 0.066 |
| MOX-HTI-2300-270 | 27 | 14.3 | 19.2 | 0.014 | 0.53 | 1.18 | 0.066 |
| MOX-HTI-2300-330 | 33 | 13.6 | 23.0 | 0.015 | 0.53 | 1.14 | 0.053 |

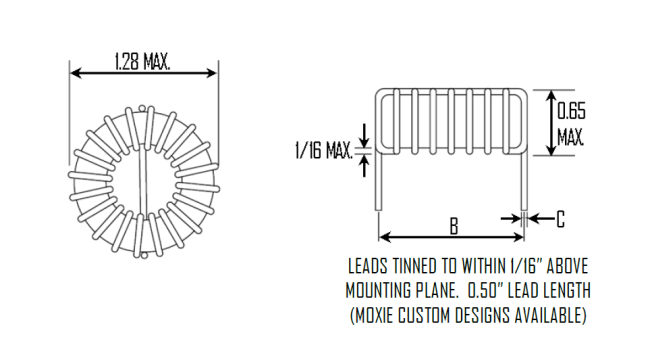

Dimensions:
