Isolation CCFL Inverter Electrical Power Transformer 8 Pin Durable LPE6855ER102MG
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
Isolation CCFL Inverter Electrical Power Transformer LPE6855ER102MG
Material:
•BOBBIN: Series circuit or parallel circuit.
•The best material: LCP E4008.
•Winding area is maximized.
•Optimized COVER structure design.
•Tape: Mylar tape, the main function is to bind the ferrite core. KAPTON tape, the main function is high voltage insulation and high temperature.
STANDARD ELECTRICAL SPECIFICATIONS:
| MODEL | IND. (μH) |
IND. TOL. |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE6855ER102MG | 1000 | ± 20 % | 1.89 | 0.36 | 0.358 |
| LPE6855ER152MG | 1500 | ± 20 % | 2.90 | 0.29 | 0.292 |
| LPE6855ER222MG | 2200 | ± 20 % | 4.50 | 0.23 | 0.242 |
| LPE6855ER332MG | 3300 | ± 20 % | 5.50 | 0.21 | 0.197 |
| LPE6855ER472MG | 4700 | ± 20 % | 8.30 | 0.17 | 0.166 |

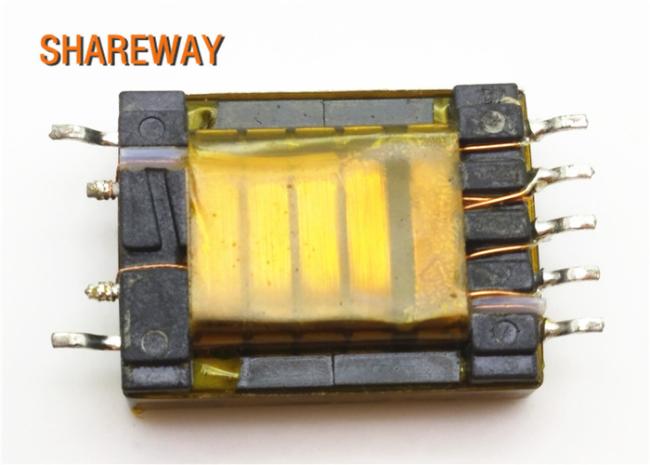

Picture:
