Inductance 1400uH Power Gate Driver Transformer HM42-40002LF For Laptop Power Supply
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
Power Gate Driver Transformer HM42-40002LF For Laptop Power Supply
Specifications @ 25°C:
|
Part Number |
Turns Ratio |
Primary Inductance (μH Min) |
Leakage Inductance (μH Max) |
Primary DCR (W Max) |
Secondary DCR (W Max) |
Pri-Sec Insulation |
| HM42-10001LF | 1:1:1 | 300 | 2.30 | 2.00 | 2.00 | 1500Vdc |
| HM42-10002LF | 2:1:1 | 300 | 2.30 | 2.00 | 1.00 | 1500Vdc |
| HM42-20001LF | 1:1 | 695 | 0.50 | 1.00 | 1.00 | 1500Vdc |
| HM42-20002LF | 1:1 | 785 | 0.46 | 0.60 | 0.60 | 1500Vdc |
| HM42-30001LF | 1:1:1 | 980 | 0.75 | 0.50 | 0.50 | 1500Vdc |
| HM42-30002LF | 1:1 | 980 | 0.75 | 0.50 | 0.50 | 1500Vdc |
| HM42-30003LF | 1:1:1 | 1500 | 0.50 | 0.62 | 0.62 | 1500Vdc |
| HM42-40001LF | 1:1:1 | 3300 | 0.70 | 1.60 | 1.60 | 1500Vdc |
| HM42-40002LF | 1:1 | 1400 | 0.50 | 0.60 | 0.60 | 1500Vdc |
| HM42-40003LF | 1:1 | 1200 | 0.50 | 0.50 | 0.50 | 1500Vdc |
| HM42-40004LF | 2:1:1 | 1200 | 0.60 | 0.60 | 0.30 | 1500Vdc |

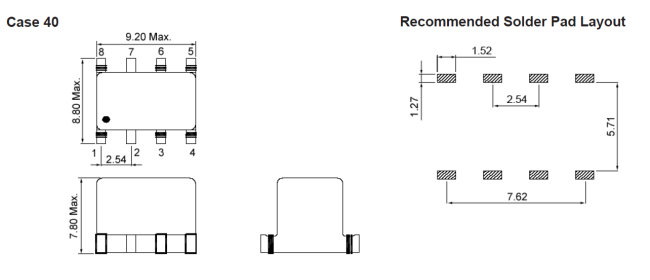

Dimension:
