EFD-008SG Power Supply SMPS Flyback Transformer 1.9uH LK For Audio Equipment
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
EFD-008SG Power Supply Transformer Lighting Transformer For PCB
Electrical Specifications @25 :
| Part Number |
Power (W) |
Vinput (DC) |
Output | Aux/Bias | Drive |
Application (KHz) |
Pri (uH)±10% |
Leakage (uH MAX) |
Hi-pot (Vrms) Pri-Sec |
Size W*L*H(mm) |
| EFD-022SG | 10.0 | 36-57V | 3.3V,3.0A | 10V,20mA | 5.6V,10mA | 125 | 166.5 | 2.5 | 1500 | 22.3*17.3*9.0 |
| EFD-008SG | 10.0 | 36-57V | 5.0V,2.0A | 10V,20mA | 7.5V,10mA | 125 | 150 | 1.9 | 1500 | 22.3*17.3*9.0 |
| EFD-275SG | 10.0 | 36-57V | 12V,0.83A | 10V,20mA | 6.0V,10mA | 125 | 166.5 | 1.8 | 1500 | 22.3*17.3*9.0 |
| EFD-007SG | 10.0 | 30-57V | 5.0V,2.0A | 10V,15mA | 7.5V,10mA | 100 | 157.5 | 2.0 | 1500 | 22.3*17.3*9.0 |
| EFD-222SG | 10.0 | 28-59V | 3.3V,3.0A | 10V,15mA | 5.6V,10mA | 100 | 170 | 3.0 | 1500 | 22.3*17.3*9.0 |
| EFD-080SG | 11.0 | 9.5-60V | 4.4V,2.5A | 11.7V,15mA | 5.6V,10mA | 250 | 60 | 0.8 | 1500 | 22.3*17.3*9.0 |
| EFD-408SG | 12.0 | 37-57V | 12V,1.0A | 11.5V,0.2A | / | 200 | 170 | 4.0 | 1500 | 22.3*17.3*9.0 |
| EFD-252SG | 13.0 | 28-59V | 3.3V,4.0A | 10V,15mA | 5.6V,10mA | 100 | 170 | 3.0 | 1500 | 22.3*17.3*9.0 |
| EFD-224SG | 13.0 | 36-60V | 5.0V,2.6A | 6.0V,20mA | 6.0V,10mA | 100 | 62.4 | 1.0 | 1500 | 22.3*17.3*9.0 |
| EFD-394SG | 13.0 | 36-72V | 5.0V,2.6A | 12V,20mA | / | 250 | 40 | 1.9 | 1500 | 22.3*17.3*9.0 |
| EFD-262SG | 13.0 | 36-72V | 5.0V,2.6A | 15V,0.2A | / | 250 | 94 | 3.9 | 1500 | 22.3*17.3*9.0 |

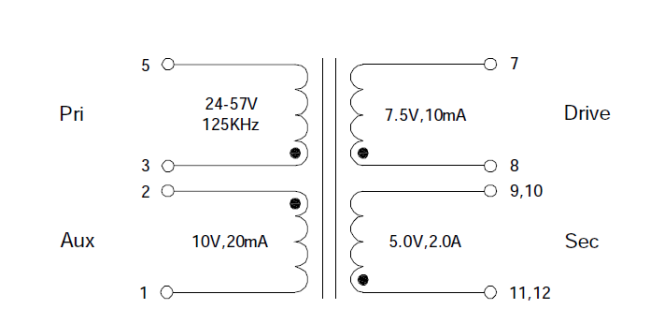

SCHEMATICS:
