EFD Power SMD/SMT Small Flyback Transformer EFD-328SG 9-57V 22.317.39.0cm

Price Negotiable

Price: Supportive

MOQ: 500/1000

Delivery Time: Stock Or 3 weeks

Brand: Shareway

Product Description

9-57V 22.3*17.3*9.0cm EFD Power SMD/SMT Transformer EFD-328SG

Description:

Part Number	EFD-328SG
Power (W)	15.0
Vinput (DC)	9-57V
Output	5.0V,3.0A
Aux/Bias	13V,15mA
Drive	5.0V,10mA
Application freq (KHz)	300
Pri Inductance (uH)±10%	20
Leakage Inductance (uH MAX)	0.5
Hi-pot (Vrms) Pri-Sec	1500
Length	22.3
Width	17.0
Height	9.0

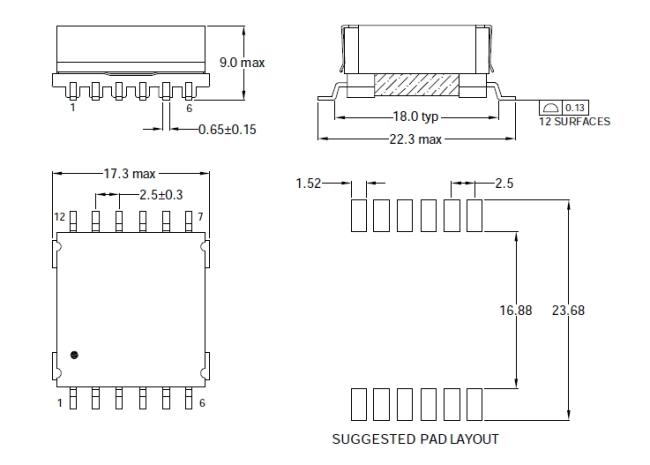

Dimension:
