China Mini Electric Isolate SMPS Flyback Transformer Ferrite Coil EFD-064SG For Cooling Fans for sale

Mini Electric Isolate SMPS Flyback Transformer Ferrite Coil EFD-064SG For Cooling Fans

Price Negotiable
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
Product Description

EFD-064SG Surface Mount Type Mini Electric Isolate Transformer For Cooling Fans

Description:

Part Number EFD-344SG
Power (W) 25.0
Vinput (DC) 18-57V
Output 5.0V,5.0A
Aux/Bias 11V,20mA
Drive /
Application freq (KHz) 250
Pri Inductance (uH)±10% 50
Leakage Inductance (uH MAX) 1.1
Hi-pot (Vrms) Pri-Sec 1500
Length 29.3
Width 21.85
Height 12.0

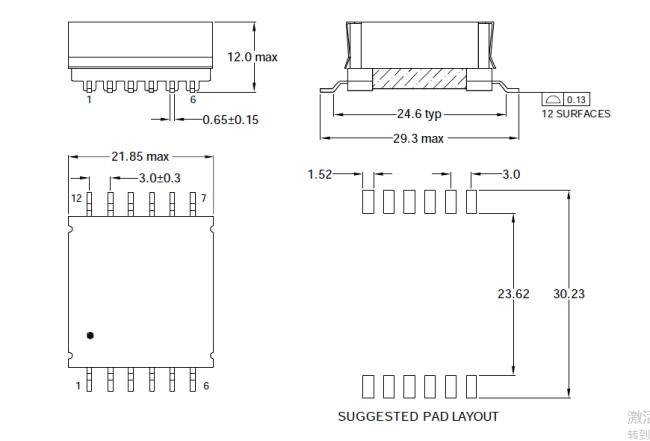

Dimensions:
