China 40 Pins Surface Mount Lan Transformer 28.1x16.0x6.4mm TE4001CG 1500Vrms Hi Pot for sale

40 Pins Surface Mount Lan Transformer 28.1x16.0x6.4mm TE4001CG 1500Vrms Hi Pot

Price Negotiable
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
Product Description

28.1x16.0x6.4mm 40Pins Surface Mount Lan Transformer TE4001CG

Electrical Specifications @25°C

Part Number OCL(mH Min)
@10KHz,0.1V

Turns Ratio
(±2%)

Pri:Sec

LL
(uH MAX)

100KHz,0.2V

Cww
(pF MAX)

100KHz,0.2V

DCR
(Ω MAX)

Pri

Primary Pins

Transmit

Primary Pins

Receive

 Hi-Pot
(Vrms)
TE4001CG 1.2&1.2 1:2CT 0.8&0.8 35&35 0.8 4-5,9-10,14-15,19-20 24-25,29-30,34-35,39-40 1500
TE4008CG 1.2&1.2 1CT:2&1:2CT 0.6&0.6 35&35 1.2 4-5,9-10,14-15,19-20 1-3,6-8,11-13,16-18 1500
TE4016CG 1.2&1.2 1:2.4&1:1 0.5&0.5 35&35 1.5 1-2,8-9,11-12,18-19 3-4,6-7,13-14,16-17 1500
TE4027CG 1.2 1:1.266 0.7 & 0.7 35&35 1.2 1-2,6-7,11-12,16-17 3-4,8-9,13-14,18-19 1500

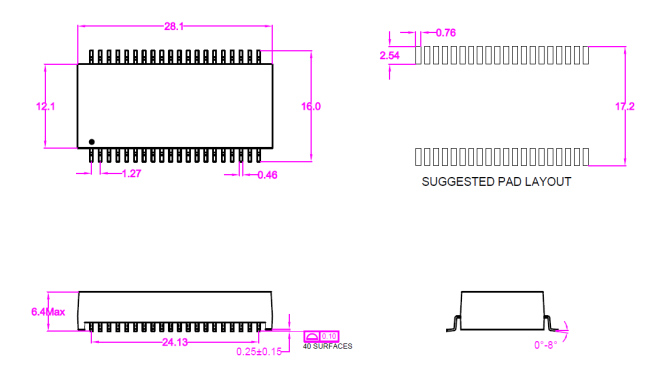

Dimensions:
