M2411CG Ethernet Isolation Transformer Surface Mount For VDSL Digital Device
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
M2411CG Ethernet Magnetic Transformers For VDSL Digital Device
Description:
- RoHS Compliant.
- 10G Base-T,Surface Mount Type,Open Header .
- Operating temperature range: 0℃ to +70℃.
- Meets IEEE 802.3an Standards.
- Pass 6KV surge(No breakdown during the test)
| Part number | M2411CG |
| Brand | Shareway |
| Type | Surface Mount |
| Feature | Open Header |
| Speed | 10G Base-T |
| Application | HDBaseT |
| Inductance | 120uH |
| Pin number | 24 Pins |
| Turns Ratio | 1CT:1CT |
| Hi-pot | 3000V |
| Size | 13.6x15.0x6.6mm |
| Operating temperature range | 0℃ to +70℃ |

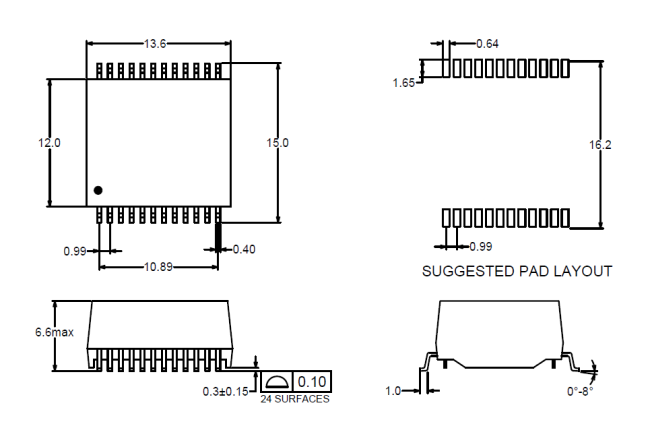

Dimension:
