Excellent Insertion Loss Small Signal Transformer RFT-034SG 4.7mm Height Long Lifespan
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
RFT-034SG Excellent insertion loss Small Signal Transformer RF Transformer
Electrical Specifications @25°C-Operating Temperature -40°C to+85°C
| Part Number |
System Impedance |
Impedance Ratio Pri:Sec |
Bandwidth(MHz Max) 3dB |
Bandwidth(MHz Max) 2dB |
Bandwidth(MHz Max) 1dB |
| RFT-034SG | 50 | 1:4 | 10-500 | --- | --- |
| RFT-035SG | 50 | 1:4 | 2-800 | 5-600 | 10-100 |
| RFT-036SG | 50 | 1:1 | 2000-3000 | 1000-2000 | 4.5-1000 |
| RFT-037SG | 50 | 1:4 | --- | 1-450 | 10-200 |
| RFT-038SG | 75 | 1:1 | --- | --- | 150-200 |
| RFT-039SG | 50&75 | 1:4 | --- | --- | --- |
| RFT-040SG | 50&75 | 2.25:1 | --- | --- | --- |
| RFT-041SG | 50 | 1:1 | --- | --- | --- |
| RFT-042SG | 75 | 1:1 | --- | --- | --- |
| RFT-043SG | 75 | 1:1 | 0.3-700 | 0.5-500 | 5-250 |
| RFT-044SG | 75 | 1:4 | --- | 5-1000 | 30-700 |

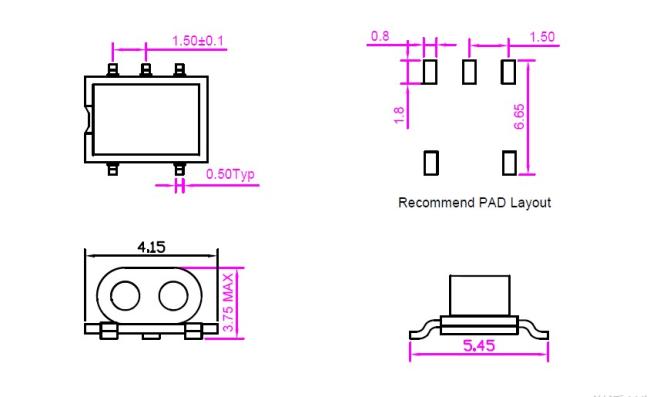

Dimensions:
