Copper SMPS Flyback Transformer Ferrite Magnet SA9672NL = ZA9672-BE For LM25184-Q1
SA9672NL = ZA9672-BE SMD transformer For LM25184-Q1 Flyback Converter
SA9672NL is a five output version optimized for typical design applications of TI's LM25184 flyback converter. It is designed to operate up to 300 kHz with 4 to 42 V input voltage . Normally this part have a 1500 Vrms isolation voltage between primary and secondary.
Specifications:
| Part Number | Trader Part Number | Inductance ± 10% (uH) @ 0A | Inductance± 10% (uH) @ 5A | Lk max (uH) | Primary DCR max (ohm) | Secondary DCR max (ohm) | Turns Ratio / Pri: Sec | Isolation (Vrms) | Power (W) |
| SA9672NL | ZA9672-BE/ YA9672-BE | 7 | 6.3 | 0.10 | 0.035 | 0.0480 | 1:1 | 1500 | 12 |
| SA9672NL | 750319029 / 12387-T162 | 7 | 6.3 | 0.10 | 0.035 | 0.0480 | 1:1 | 1500 | 12 |
| SA9670NL | ZA9670-BE | 9 | 8.1 | 0.40 | 0.047 | 0.0110 | 4:1 | 1500 | 11.55 |
| SA9671NL | ZA9671-BE | 9 | 8.1 | 0.25 | 0.047 | 0.0145 | 3:1 | 1500 | 12.5 |
| SA9673NL | ZA9673-BE | 7 | 6.3 | 0.10 | 0.035 | 0.1380 | 1:2 | 1500 | 12 |
| SA9674NL | ZA9674-BE | 9 | 8.1 | 0.15 | 0.047 | 1.1060 | 1:3 | 1500 | 12 |
Product Photo:

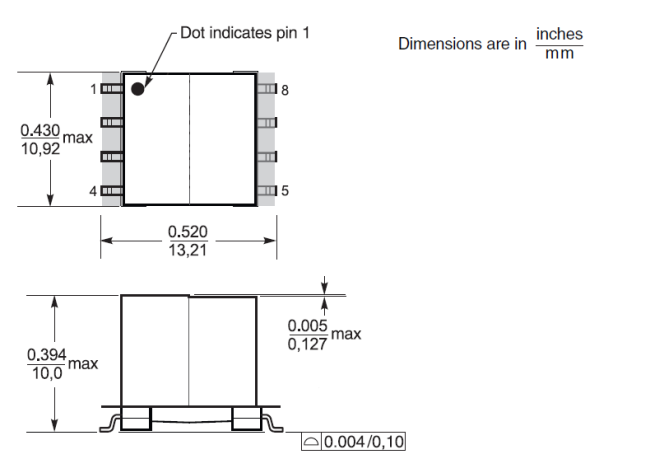

Dimension of SA9672NL = ZA9672-BE :

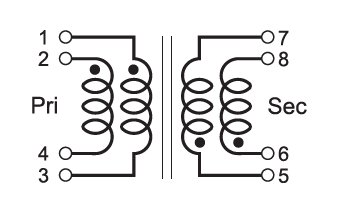

Schematic of SA9672NL = ZA9672-BE :
Order Show :
Application Show :
FAQ:
Q: Can I have samples for testing quality?
A: Yes, you can buy some samples of any of our products for testing quality and market
Q: What is the delivery time if we place an order?
A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for bigger quantity, let’s check when you place official order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service, we turn your idea into reality.
Q: Can I have my own logo on the products?
Yes, we support customer logo for mass production.
Q: Do your products meet CE/ROHS requirements?
Yes, with CE/ROHS certification.
