L00-2195 19:36 400uH 3750VRMS DIP 3+3 Total 6 Pins Isolation Transformer
L00-2195, 19:36 400uH 3750VRMS DIP 3+3 total 6 Pins Isolation Transformer
DESCRIPTION:
The L00-2195, 19:36 400uH 3750VRMS DIP 3+3 total 6 Pins Isolation Transformer is suitable for Automotive EV/ PHV AC/DC onboard battery charges applications.
It has 3+3, a total of 6 pins, with thourgh hole mount legs, easily for limited place using.
Key FEATURES of ST2195NL = L00-2195 Isolation transformer:
- RoHS compliant
- UL 94 V-0 package materials
- Low profile
- Toroidal construction
- Signal transformer for HPGP (HomePlug Green PHY) PLC modems
- For power line communication devices acc. to IEC 15118 standard
- Wide operation temperature range from -40℃ to +125 ℃
| Trader Part Number | Turns Ratio |
Min. Inductance |
Primary Min. Volt-time Product, Et |
DC Resistance (1-3) |
DC Resistance (4-6) |
Isolation Voltage |
|
| μH | Vμs | Ω | Ω | Vrms | |||
| ST2195NL = L00-2195 | 19:36 | 400 Min @ 100 KHz, 20mV | 18.3 | 0.7 NOM. | 1.3 NOM. | 3500 | |

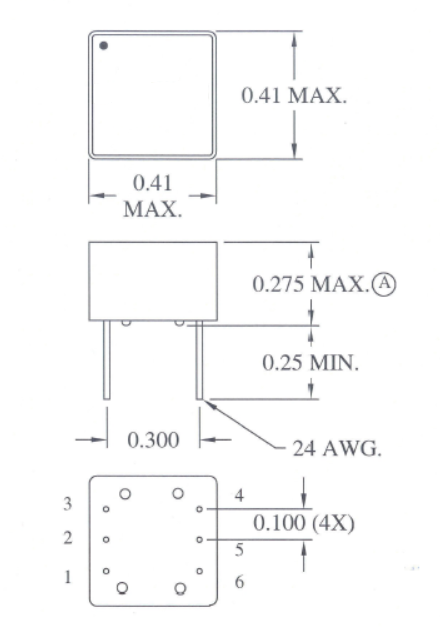

The Dimension of the L00-2195, 19:36 400uH 3750VRMS DIP 3+3 total 6 Pins Isolation Transformer
Shape and Dimensions:

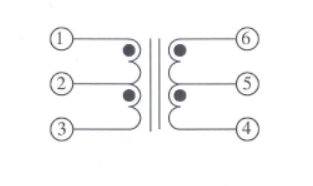

Schematic:
