PVC PE Label End Of Line Packaging Equipment 150 - 450 Bottles Per Minute
2) It is built upon a framework of seam welded, food grade stainless steel section. This solid
foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate
labeling.
3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm.
you never need to change or debug it.It also has unique light touch human-machine screen,that
means,auto search original location as well as safety and convenience which is ahead of other
congener products.
Technical parameter
| MODEL | SRL-150 | SRL-250 |
| Speed | MAX 150BPM | MAX 250BPM |
| Main machine size | 1000*860*1800L*W*H(mm) | 1000*860*1800L*W*H(mm) |
| Applicable diameter of bottle | φ25mm –φ125mm | φ25mm –φ125mm |
| Height of shrink label | 25 mm ~300mm,special can be designed | 25 mm ~300mm,special can be designed |
| Thickness of shrink label | 0.035mm~0.13m(PVC ,PET ,OPS) | 0.035 mm~0.13 mm(PVC ,PET ,OPS) |
| Shrink tunnel | Electrical / steam | Electrical / steam |
| Model | SRL-350 | SRL-450 |
| Speed | MAX 350BPM | MAX 450BPM |
| Main machine size | 1000*860*1800L*W*H(mm) | 1000*860*1800L*W*H(mm) |
| Applicable diameter of bottle | φ25mm –φ125mm | φ25mm –φ125mm |
| Height of shrink label | 25 mm ~300mm,special can be designed | 25 mm ~300mm,special can be designed |
| Thickness of shrink label | 0.035mm~0.13m(PVC ,PET ,OPS) | 0.035 mm~0.13 mm(PVC ,PET ,OPS) |
| Shrink tunnel | Electrical / steam | Electrical / steam |

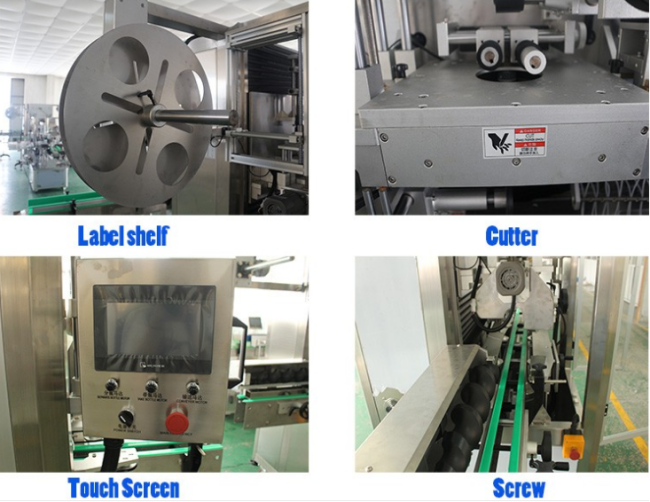

Machine details
Main Features
1. Adjustable feeding sensor, precision lock up sleeve.
2. Facilitates fast and efficient feed changes, thereby saving time.
3. No tools required for specification change, fast, convenient, easy.
4. Advance operating system, colorful touch screen is more human being.
5. Can be operated independently or as part of your existing production line.
6. Original adjustable knife plate ensure smooth cutting and easy blade change.
7. Synchronous feeding screw design, preventing bottle shake during conveying.
8. Single orientation mandrel, allowing steady feeding and smooth inserting of labels.
9. High-normal electric, the feeding cutter co-ordinates flawlessly thereby allow smooth feeding.
2. PE film shrink wrapping machine
Product introduction
L Type Shrink Wrapping Machine
The machine can be used for mineral water, drinks, beer, wine and medicine bottle’ group
packing, which does not need bottom tray. Also, products will be firm and beautiful.
It adopts the imported PLC programming automatic control. It has stable function and precision
control. It has automatic functions such as conveying materials, unscrambling, shrinking and
cooling and design finalizing flow. The film conveying adopts imported transducer control in order
to reach stepless speed conversion. It also has advanced spiral wind circulating structure and
three-layer heat insulation to save resources. In addition, it uses enhanced cooling and design
finalizing passage, which can make product packing finalize the design more effective, easy to
be stored and transported.
It is widely used in mineral water bottles, pure water bottles, soft drink bottles, medicine bottles,
food bottles and other containers. Production capacity range is 8-12packs/minute.
Zhangjiagang JINYATE Machinery Co., Ltd. is located in Zhangjiagang city, which is near to
Shanghai. We are an industry leader in beverage filling &package machine, we can help provide
a customized design to meet your demands. Our expertise in the follong categories will bring your
ideas to your customers.
1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);
2. barrel mineral/ pure water production line (3L,5L,10L,19L,)
3. bottling carbonated beverage production line (like coca cola);
4. bottling juice production line;
5. canning beverage production line;
6. glass bottle beverage production line;
7. carbonated beverage and juice production auxiliary plants
With the comprehensive understandeing in various ranges of beverage products and
long-time experience in import-export sector, with our profession, enthusiastic determined team,
we are proud to say that we have been shipping many order to the USA, Germany, Austrilia,
India, Africa, Malaysia, Russia..., our good quality and service win us worldwide old customeres.
If furthur learn, we will provide you more helpful information.....
