Carrying Belt Peel Test Equipment , Adhesive And Film Tensile Testing Machine Horizonal
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
7-10 working days after confirm order
Brand:
PERFECT
Product Description
Carrying Belt Peel Testing Machine , Adhesive And Film Tensile Testing Machine Horizonal
Applcation: Horizontal tension machine is special suitable for carrying belt, adhesive belt, adhesive tape, artificial leather and other products of stripping force, tensile strength, shear force, elongation at break, etc.
Horizonal Peel Test Machine Parameters :
| Model | PT-1197 | PT-1197D |
| Load Cell | 2,5,10,20,50,100kgf choose one | |
| Displayer | Touch type force and extention display | |
| Measurement Accuracy | Better than ±1.0% | |
| Force Resolution | 1/500,000 | |
| Effective Range of Measurement | 1~100%F.S | |
| Deformation Display Accuracy | Better than ±1.0% | |
| Test Speed | 1～400mm/min,free set | |
| Test Stroke | Max 300mm,not including the fixture length | |
| Unit Switch | kgf,gf ,N,kN,Ibf | |
| Stress unit switch | MPa,kPa,kgf/cm2,Ibf/in2 | |
| Deformed unit switch | mm,cm,in | |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure | |
| Point Method | Manual pick - up and pre-set pick - up (20 points) | |
| Standard Configurations | Tensile fixture 1 set,user manual 1 ,qualified certificate 1,wrranty card one | |
| Computer extension | NO | Yes |
| Machine Size | About 67×23×33cm(W×D×H) | |
| Machine Weight | About 25kg | |
| Motor | Stepper Motor Or Servo Motor | |
| Electric Power | 1PH,AC220V,50/60Hz,10A or as specified |
|

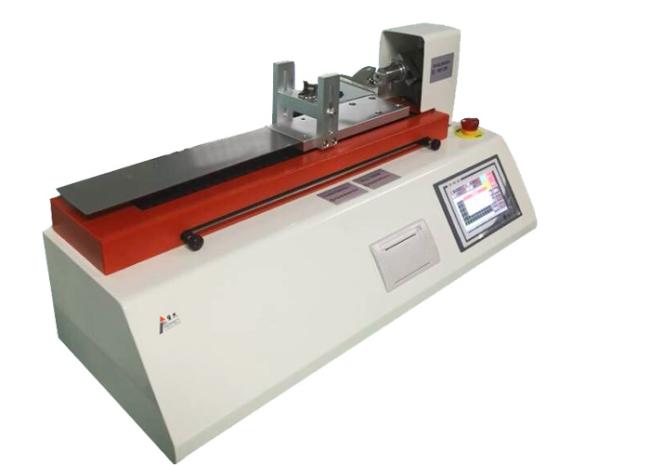

Refer picture of Small Horizonal Peel Strength Machine:
