90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
90° Peel Adhesion Tester 10000MM / Minute Fast Speed For Tape And Film ASTM D3330
Introduction: This high speed stripping test machine is suitable for the tensile strength, peel strength, deformation of plastic films, composite films, adhesives, adhesive ,tapes, medical patches, protective films, release paper, rubber, artificial leather, paper fibers and other products Performance tests such as rate, breaking force, peeling force, opening force, thrust, etc., especially the angle-adjustable test piece fixing plate on the machine, the height and angle of the sensor can be changed according to the needs of users.
Techinical Parameters :
| Model Name | PT-6099 90° Peel Adhesion Tester 10000MM / Minute Fast Speed For Tape And Film |
| Force Capacity | 10N,20N,50N,100N,200N,500N , any one option |
| Control Method | Computerized with professional software |
| Force Accuracy | Better than ±0.5% |
| Angle Adjust | 90°, 180° or other angle(45°,135°,etc) |
|
Measurement Range |
0.5~100%F.S |
| Test Speed |
10～10000mm/min 10～15000mm/min (customized) 10～20000mm/min (customized) 10～30000mm/min (customized) |
| Test Travel | 650mm(or customized) |
| Specimen Width | 50mm |
| Unit Switch | kgf,gf ,N,kN,Ibf, MPa,kPa,kgf/cm2,Ibf/in2 ,mm,cm,in |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | Standard fixture 1 set, data line 1 piece, power supply line 1 piece, user manual 1 copy, product certificate 1 copy , 1 product warranty card |
| Purchase Configuration | Business computer , printer , various test grips |
| Machine Size | 106×35×39cm(W×D×H) |
| Machine Weight | About 30kg |
| Motor | AC Servo Motor |
| Power Supply | AC 220V,50/60Hz,10A or as requested |
High Speed Peel Machine Features:
1. Angle 90°, 180° and other angle within 180°adjustable;
2. The speed is adjustable from 10mm to 30000mm/min;

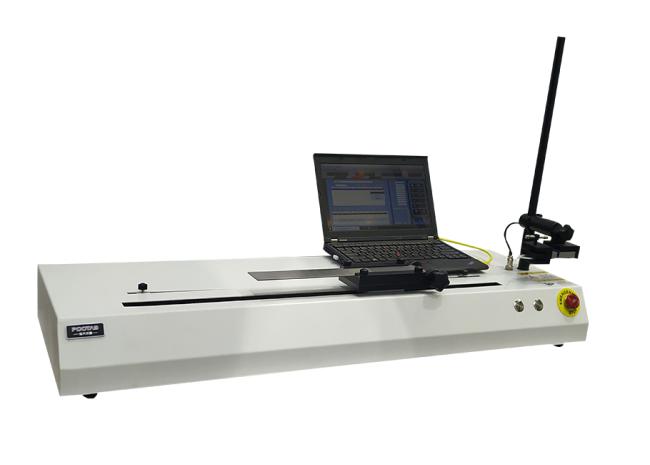

Refer Picture:
