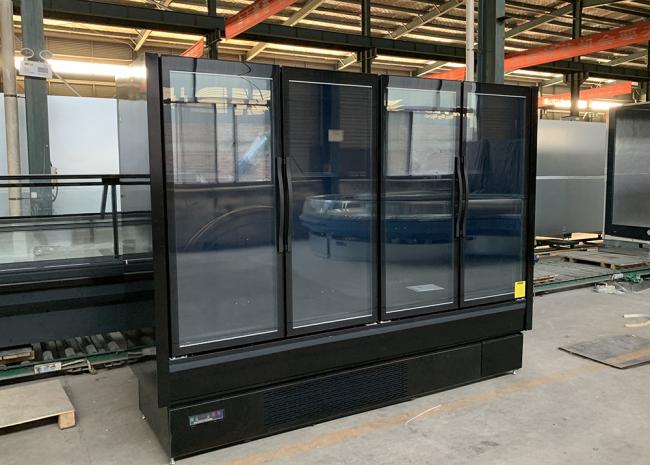

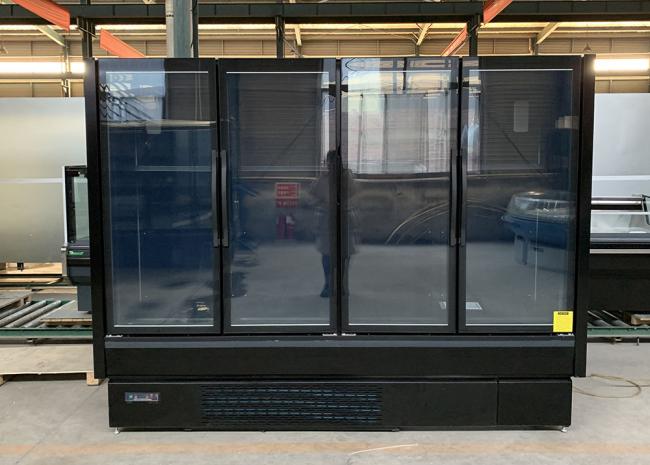

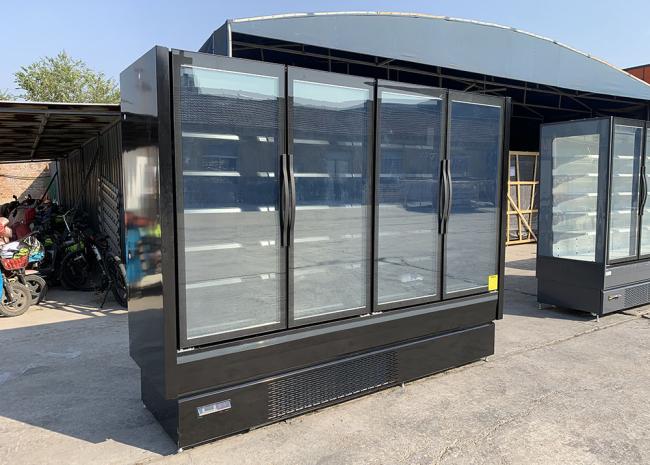

Plug In Air Cooling 4 Glass Door Merchandiser Freezer R404a Refrigerated
R404a refrigerated Freezer plug in open air 4-glass door
merchandiser freezer
Our SMART open air 4 swing glass doors Freezer, with latest stylish swing full version door. This is an excellent way to improve display of the products, increase turnover and reduce electricity bills. Whilst maintain all standard multi-deck display freezers features available. Which is very popular now. can be joined in a multiplexed way.
Features:
⇒Base plate in angular welded steel.
⇒Adjustable front feet for a perfect positioning of the cabinet.
⇒Exterior and interior framed in hot galvanized steel sheet.
⇒Insulation in foamed polyurethane with a thickness of 40Kg/m3.
⇒5 upper display shelves reversible and removable,
⇒Interior lighting by means of fluorescent neon tube.
⇒Air forced refrigeration with a large surfaced evaporator.
⇒Built-in SECOP/EMBRACO.
⇒Refrigerant control through capillary tube.
⇒Power supply 220V/50HZ or 110V/60HZ single phase.
⇒Temperature regulation through thermostat.
⇒Automatic defrosting of the evaporator.
⇒Removable drip tray.
⇒Full Version Glass door for better display effect
⇒ S/S bump rail optional
Specifications:
| MODEL | SMART 250GF |
| CONDENSING UNIT TYPE | Plug in |
| TEMPERATURE RANGE | -16~-22 °C |
| SHELF QUANTITY | 5 LAYERS |
| AMBIENT TEMPERATURE | 32°C |
| VOLTAGE | 220V - 240V |
| FREQUENCY | 50Hz, 60Hz |
| REFRIGERANT | R404a |
| PRODUCT DIMENSION (MM) | 2620(w) x 750(d) x 2000(h) |
| PACKAGE DIMENSION (MM) | 2700(w) x770x 2120(h) |
| LOADING QTY / 40HQ | 12PCS |
Specifications:
| Model |
Dimensions (L*W*H)mm |
Temperature | Compressor | Refrigerant | QTY(40HQ) |
| SMART 125GF | 1370*750*2000 | 16~-22 °C | SECOP | R290/R404a | 24PCS |
| SMART 187GF(3 door) | 1995*750*2000 | -16~-22 °C | SECOP | R290/R404a | 18PCS |
| SMART 250GF(4 door) | 2620*750*2000 | -16~-22 °C | EMBRACO | R404a | 12PCS |
Photos:

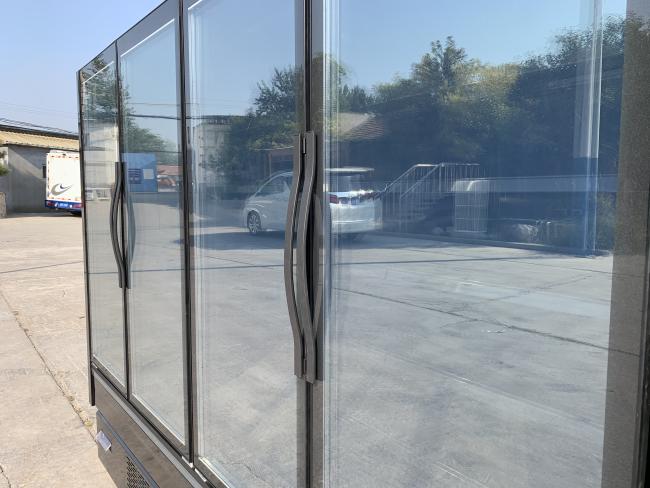

Full version glass door:
Top Electric Box:

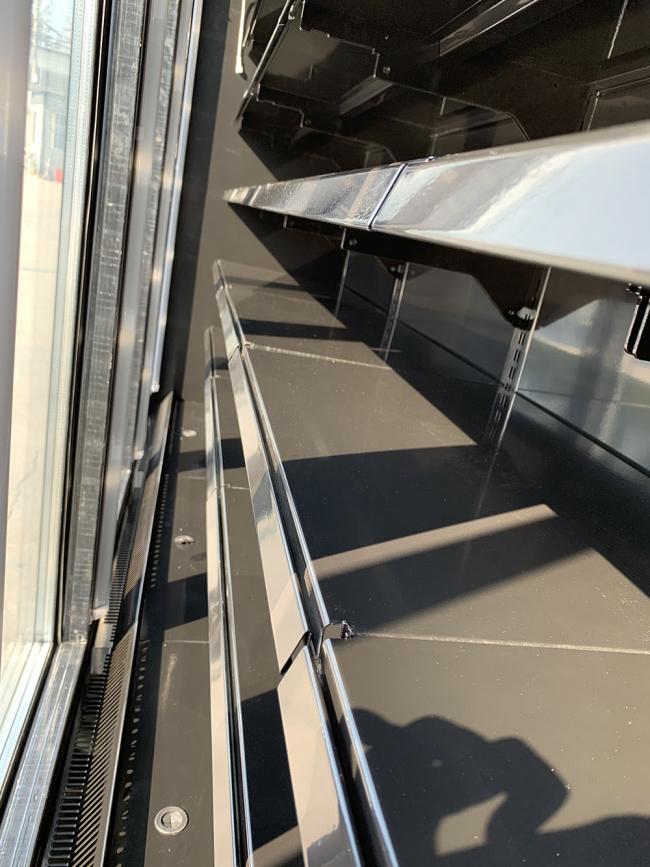

Shelf with price tag & plexiglass front riser:

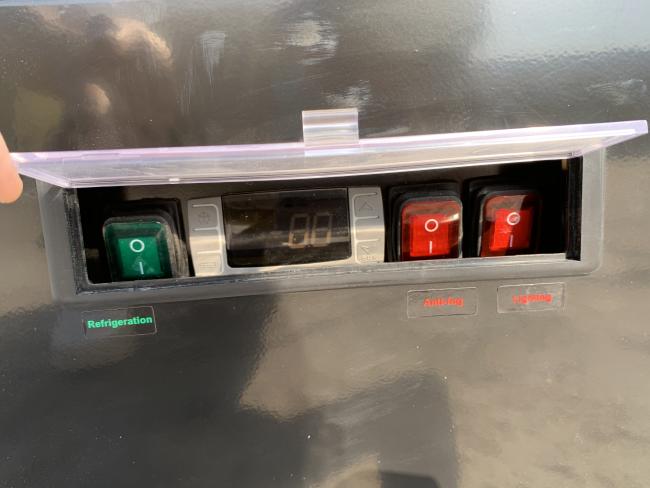

Dixell Thermostat:

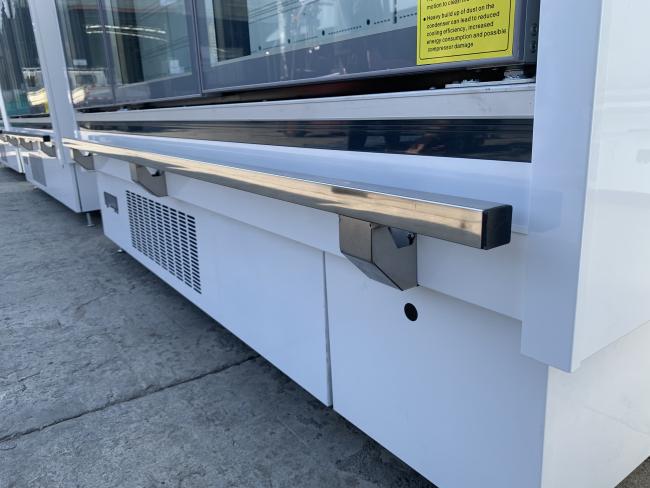

S/S Bump Rail:

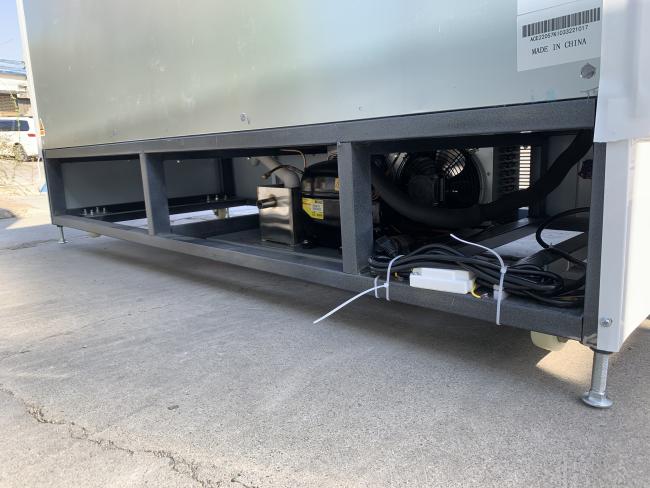

Bottom mounted R404a refrigeration system:
Various plugs available to match accordingly:
