LP502460 Light Weight Rechargeable Lithium Polymer Battery 2P 3.7V 1700mah lithium battery

Price Negotiable
Price: Bargain
MOQ: 100pcs
Delivery Time: 7-15 days
Brand: OEM
Product Description

Model:

Li-Polymer battery Pack

3.7V rechargeable batteries

Polymer lithium battery

Lithium ion battery

Li-ion Polymer Battery

Rechargeable Li Ion 502460 Lithium Polymer Battery 2P 3.7V 1700mah


Major Application:

1) MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products

2) Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.





Li-Polymer battery Product Advantages:

1) Environmental friendly

2) High density of energy

3) Light weight

4) Low self-discharge

5) Low internal resistance

6) Long cycle life, chargeable up to 500 or 1000 times

7) No memory effect

8) Doesn’t contain Mercury, No fire, No explosion, No leakage

9) Very good and quick charge, capability can be charged to 90% within 10 min.

10) Thickness can be adjusted while width and height keep the same


Product Specification:



Package

No.


Item


General Parameter


Remark


1

Combination method


2P




2

Rated Capacity


Typical


1700mAh

0.2C5A Standard discharge after Standard charge(package)


Minimum


1650mAh
3

Nominal Voltage


3.7V

Mean Operation Voltage


4

Voltage at end of
Discharge


3.0V

Discharge Cut-off Voltage


5

Charging Voltage


4.2V
6

Internal Impedance


≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times


7

Standard charge


Constant Current 0.2C5A
Constant Voltage4.2V
0.05C5A cut-off



Charge time : Approx 6.0 h


8

Standard discharge
)

Constant current 0.2C5A
end voltage 3.0V





9

Maximum Continuous Charge Current


0.5C5A 850mA


Appearance

There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect

commercial value of battery.


Standard Test Conditions:

Test should be conducted with new batteries within one week after shipment from our factory

and the cells shall not be cycled more than five times before the test.

Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃

and relative humidity of 45~85%.

If it is judged that the test results are not affected by such conditions, the tests may be

conducted at temperature 15~30℃ and humidity 25~85%RH.

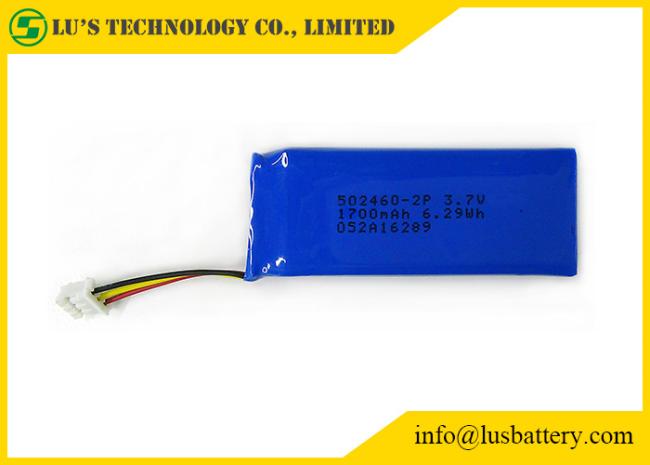

Li ion Polymer Lithium Rechargeable Battery 2P LP502460 1700mah 3.7V:
