LP1054 Rechargeable Coin Cell Lithium Polymer Battery 3.7V 42mah Round Lipo Battery
Price:
Bargain
MOQ:
5000 pcs
Delivery Time:
15-20 days
Brand:
OEM
Product Description
LP1054 3.7v button lipo battery Description:
| Cell model | LP1054 |
| Nominal voltage | 3.7V |
| Typical capacity | 42mah |
| Minimum capacity | 40mah |
| Fully charge voltage(FC) | 4.2V |
| Fully discharge voltage(FD) | 3.0V |
| Standard charge current | 0.2C |
| Max charge current | 1.0C |
| Standard discharge current | 0.2C |
| Max discharge current | 1.0C |
| Peak discharge current | 1.0C |
| Weight | Appr:1.5g |
| Shipment voltage | 3.80-3.95V |
| Cell impedance | ≤800mΩ |
| OEM and ODM | Welcome |

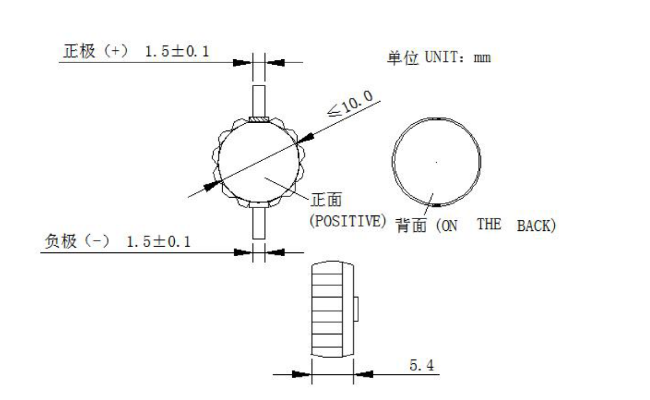

Cell Outline Drawing:

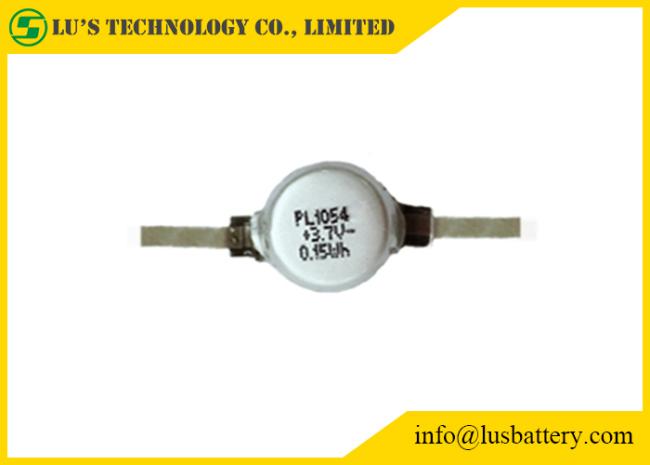

PL1054 Cylindrical lithium polymer battery picture:
Small size lipo batteries list:
| No. | Model | Diameter1 (mm) | Diameter2 (mm) | Length 1 (mm) | Length 2 (mm) | Capacity(mAh) | internal resistance (mΩ) | Typ. voltage (V) | Full voltage (V) | |
| Typ. | min. | |||||||||
| 1 | 75300 | 7.50 | 7.50 | 31.0 | 33.0 | 105 | 100 | 280 | 3.7 | 4.2 |
| 2 | 10100 | 9.50 | 9.50 | 9.5 | 11.5 | 53 | 50 | 550 | 3.7 | 4.2 |
| 3 | 75130 | 6.00 | 7.50 | 16.5 | 18.5 | 42 | 40 | 600 | 3.7 | 4.2 |
| 4 | 10110 | 10.20 | 10.20 | 9.5 | 11.5 | 63 | 60 | 500 | 3.7 | 4.2 |
| 5 | 75150 | 6.80 | 7.50 | 15.5 | 17.5 | 63 | 60 | 400 | 3.7 | 4.2 |
| 6 | 85180 | 8.50 | 8.50 | 16.0 | 18.0 | 78 | 75 | 550 | 3.7 | 4.2 |
| 7 | 67240 | 6.70 | 6.70 | 22.0 | 24.0 | 63 | 60 | 500 | 3.7 | 4.2 |
| 8 | 08440 | 8.00 | 8.00 | 42.0 | 44.0 | 210 | 200 | 180 | 3.7 | 4.2 |
| 9 | 10150 | 9.80 | 9.80 | 13.0 | 15.0 | 84 | 80 | 400 | 3.7 | 4.2 |
| 10 | 10140 | 10.00 | 10.0 | 12.5 | 14.5 | 80 | 75 | 400 | 3.7 | 4.2 |
| 11 | 10270 | 10.00 | 10.0 | 24.5 | 26.5 | 190 | 180 | 160 | 3.7 | 4.2 |
| 12 | 85200 | 8.50 | 8.5 | 18.0 | 20.0 | 95 | 90 | 300 | 3.7 | 4.2 |
| 13 | 16340 | 16.00 | 16.0 | 33.0 | 35.0 | 735 | 700 | 90 | 3.7 | 4.2 |
| 14 | 10100 | 10.00 | 10.0 | 9.0 | 11.0 | 58 | 55 | 400 | 3.7 | 4.2 |
| 15 | 08200 | 7.60 | 7.8 | 18.0 | 20.0 | 84 | 80 | 250 | 3.7 | 4.2 |
| 16 | 95100 | 7.80 | 9.6 | 10.5 | 12.5 | 58 | 55 | 400 | 3.7 | 4.2 |
| 17 | 70300 | 7.00 | 7.0 | 28.5 | 30.5 | 98 | 90 | 400 | 3.7 | 4.2 |
