3.0V Li MnO2 Ultra Thin Batteries CP502530 800mAh Primary Polymer Battery LP502530
3.0V Li/MnO2 ultra-thin film batteries CP502530 800mAh primary polymer Battery LP502530
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC, Tags, Alarm system and more applications.
Hot sale model
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
| No. | Item | Spec | Note |
|
1 |
Model
|
CP502530/800mAh |
1S1P |
|
2 |
Nominal Voltage
|
3.0V |
When shipping, the voltage without load is between3.05V and 3.25V.
|
|
3 |
Nominal Capacity
|
Typ:800mAh@1mA |
Nominal Capacity refer to the capacity of 1mA discharge to 2.0V cut-off voltage at 23℃.
|
|
4 |
Max.Discharge Current
|
120mA |
At 25±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit.
|
|
5 |
Max. Discharge Current
|
250mA |
At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit
|
|
6 |
Discharge Cut-off Voltage
|
2.0V |
|
|
7 |
Operating Temperature
|
-20℃~ +60℃ |
Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk.
|
|
8 |
storage temperature
|
-5 ℃~+35℃ | 3.05V ~ 3.25V |
| 9 |
Storage life
|
10 years |
Relative humidity 45~75%RH Temperature -5 ℃~+35℃ |
|
10 |
Cell Weight
|
Approx: 7g 7g |
|
| 11 |
Self Discharge Rate
|
2% |
Out of the recommended condition, the self-discharge rate 2% may increase.
|
|
12 |
Assemblage Dimension
|
Length:30.0mm Max Width:25.0mm Max Thickness:5.1mm Max |
Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery drawing line. |
Main Characteristics:
a. High and stable working voltage
b. Wide operating temperature range
c. Longer storage life and higher reliability
d. High safety and non-pollution
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

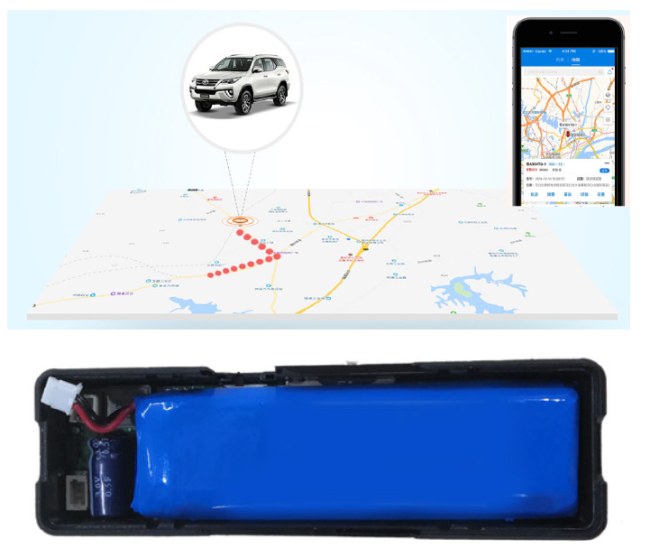

e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
Product Feature:
