IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
7 Work Days
Brand:
Raycus
Product Description
The world's smallest kilowatt-scale fiber laser
YLR-U series is the industry's smallest kilowatt-class continuous ytterbium-doped fiber laser.
Offers record-breaking performance, an extremely compact form factor, and a high power-to-volume ratio.
| Model | YLR-1000-U | YLR-1500-U | YLR-2000-U | YLR-3000-U | YLR-6000-U |
| Central Wavelength Range, nm | 1070 ±10 | ||||
| Mode of Operation | CW/Modulated | ||||
| Modulation Frequency, kHz | Up to 50 | ||||
| Max. Average Power Mode, W | 1000 | 1500 | 2000 | 3000 | 6000 |
| Power Tunability, % | 10-100 | ||||
| Power Stability, % | ±0.5 | ||||
| Output Fiber Core Diameter | 50, 100 and 200 μm or Single-mode** | ||||
| Beam Mode Quality | Multi-mode BPP mm × mrad: 2, 5, 10 Single-mode: M2< 1.1 | ||||
Laser features
- Average Power up to 6 kW* Up to >40% Wall-plug Efficiency
- Extremely Small Size and Low Weight Built-in Diagnostics with Web Connectivity
- Exceptional Operation in High Humidity Environment Single-mode Option up to 3 kW

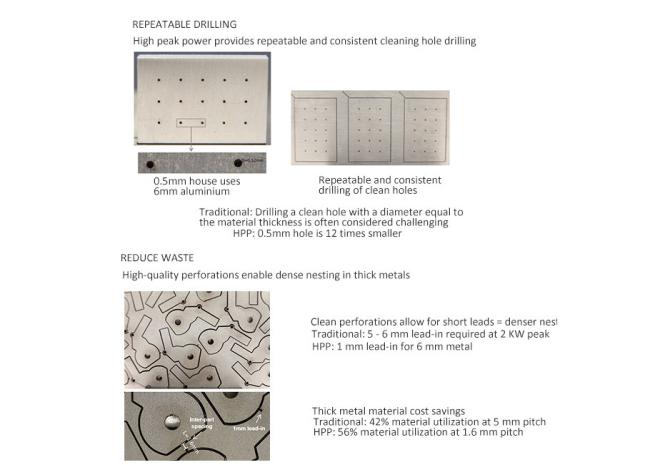

Application
| 2D & 3D Metal Cutting and Welding | Various Steels, Al, Cu, Ti Alloys, and Other Metals |
| High Speed Cutting | Conduction and Keyhole Welding |
