Long Life Aluminium Alloy Conductors ≥185MPa Ultimate Strength ASTM Approved
High Voltage ACSR Cable Aluminum Cable For Overhead Transmission Line
Quick Details
| Model Number: | AAAC |
| Insulation Material: | Bare |
| Conductor Material: | Aluminum |
| Surface Treatment: | Oxidized |
| Application: | Overhead |
| Certificate: | BS /ASTM / DIN |
| Ultimate Strength: | 185 (≥ MPa) |
| Wire Gauge: | 1.5-4.5mm |
| Conductivity: | 62.5% |
Packaging & Delivery
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.

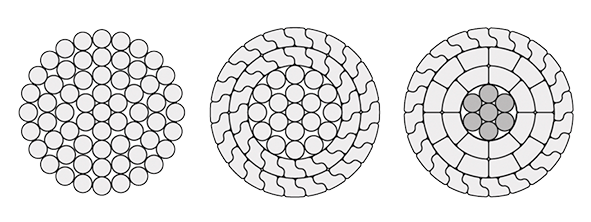

Construction
Aluminum Conductor Steel Reinforced wires, concentrically stranded
Advantages
- High tensile strength
- Long life
- Light in weigh
- Suitable for high as well as extra high overhead
Features
- high strength to weight ratio
- better sag characteristics
- improved electrical properties
- excellent resistance to corrosion
Application
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR CONDUTOR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing capacity. ACSR CONDUTORS are used extensively for overhead ground wires, river crossings etc. These ACSR CONDUTORS are available with us in various types for meeting the exact requirements of the clients.
Description
Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy. Midal manufactures and supply AAAC with different variants of electrical grade alloy type 6101 and 6201. one or more strands of hard drawn 1350 aluminium alloy.
These conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.
Midal can manufacture & supply AAAC on Non returnable wooden/steel reels or Returnable steel reels.
