Overhead Hot Dip Threaded Rod Clevis Silver Color Electric Link Fittings
Overhead Hot Dip Galvanized Steel UL Type Clevis Electric Link Fittings
Quick Details
| Model Number: | UL |
| Material: | Hot dip galvanized steel |
| Surface: | Smooth and uniform |
| Color: | Silver |
| Feature: | Link Fittings |
| Operation: | Easy |
| Stability: | High |
| Anti-corrosion: | Good |
| Certificaion: | ISO9001 Certificaion |
Packaging & Delivery
Packaging Details: by wooden case fumigated
case dimensions: 1.2*1.1*0.6m
Delivery Time: Within 1 months
Specification
Link fitting to connect insulator and fittings on ultra voltage transmission line
Description
Pole transmission line hardware tower connecting hinges is used in high voltage pole line to connect power fitting insulator strings to tower. U type clevis is made up of round steel through forging, and it is widely used for many fittings. On the one hand, it can be singly used; on the other hand, it can be also used through series connection.
Quality indemnity:
1. ISO9001 Certificaion
2. Test checking prior to shipment
3. GB/T national standard
4. Type test report provided

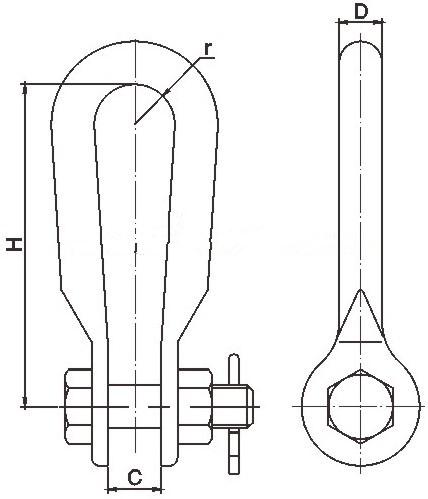

| Type | Dimension(mm) | Nominal Failure Load(kN) | Weight(kg) | |||
| C | D | H | r | |||
| UL-7 | 20 | 16 | 120 | 15 | 70 |
0.65 |
| UL-10 | 22 | 18 | 140 | 17 | 100 | 1.01 |
| UL-12 | 24 | 20 | 140 | 18 | 120 | 1.34 |
| UL-16 | 26 | 22 | 140 | 19 | 160 | 1.70 |
| UL-21 | 30 | 24 | 160 | 22 | 210 | 2.59 |
