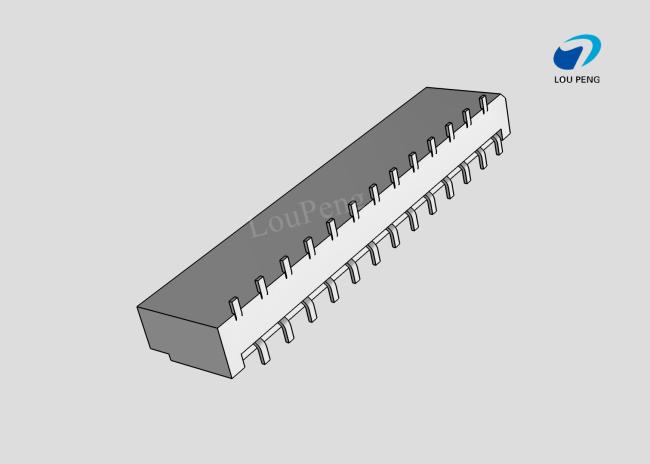

FFC Connectors, 26pin, 1.0mm pitch, No ZIF, Vertical, SMT，1.0 mm pitch connector，printed circuit connectors

FFC Connectors, 26pin, 1.0mm pitch, No ZIF, Vertical, SMT,1.0mm pitch connector,printed circuit connectors

Product Description

Connector product type: Connector component
PCB connector component type: PCB mounting parent
Connector system: flexible cable to plate
Insertion force type: No ZIF
FPC actuator Type: Cap (Plunger type)
Sealable: no
Connector and terminal End connection: Flexible Printed Circuit (FPC)

Number of lines: 2
Compatible with cable types: FFC, FPC
Number of Positions: 26
PCB mounting direction: vertical

Operating voltage (VAC): 50

Terminal base material: phosphor bronze
PCB terminal end area electroplating material: gold
Terminal shape and construction: single beam
Thickness of electroplating material in terminal joint area:.025 m [.984 in]
Terminal type: socket
Thickness of electroplating material at PCB terminal connection area:.025 m [.984 in]
Terminal joint position: Bottom
Electroplating material for terminal contact: gold
Terminal rated current (Max.) (A): 1
Terminal layout: SMT

PCB end connection method: surface mount

Joint alignment: With
PCB mounting alignment: without
PCB mounting and fixing: with
Connector installation type: Board installation

Shell material: LCP (Liquid crystal polymer)
Centerline (spacing) :.5 mm [.0197 in]

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185
