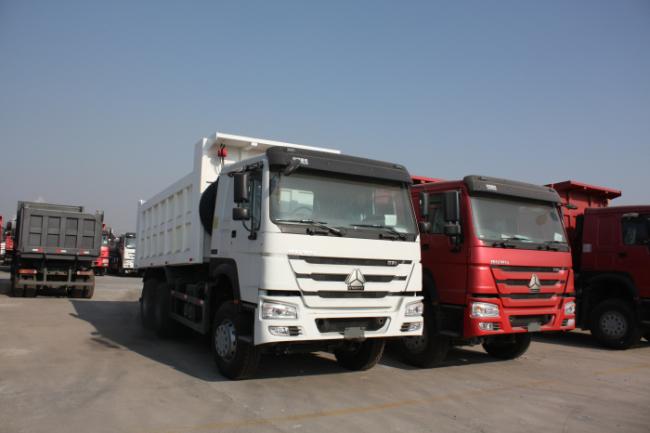

High Efficiency Heavy Duty Dump Truck / Ten Wheeler Dump Truck For Construction
10 WHEELS HEAVY TRUCK DUTY DUMP TRUCK FOR ONE BED AND FRONT LIFT SYSTEM
Heavy Duty Dump Truck
Description:
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Heavy Duty Dump Truck
Specifications:
| tem | SINOTRUK 6×4 HOWO TIPPER TRUCK 336HP |
| Truck model | ZZ3257N3647A/N0WA |
| Maximum output |
247(336)/2200 |
| Engine model | WD615.69 336HP EUR 2 |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
| Front Axles | HF9 9000kg Drum |
| Rear Axles | HC16 16TON |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Tires | 12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW19710 10 Speeds / HW19712, 12 speeds |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
| Loading Capacity |
25-30 tons |
| Driver's Cab | HW76,one bunk |
| Cargo box | 5400× 2300×1400mm bottom:8mm side: 6mm, middle lift |
Applications:
Working for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1) competive price, cost-effective
2) fast delivery time, we can arange production according to your needs exactly and quickly
3) The hydraulic sytem using HYVA brand or Domestic famouse brand
4) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
