6 Wheels Water Tank Truck 10 Cbm Capacity Euro II Engine For Cleaning

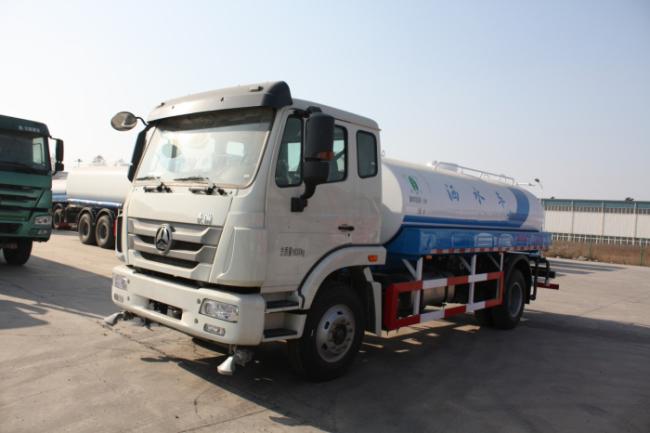

SINOTRUK HOHAN 6 wheels water tank truck 10 cbm Euro II for cleaning one bed color optional
Description:
1). Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
Specification:
| Item | SINOTRUK HOHAN 4X2 WATER TANK TRUCK |
| Truck model | ZZ1165M4715 |
|
Maximum output |
290 hp (196 Kw) at 2200 rpm Option: 290/336/371hp |
| Engine model | WD615.87,69,47 Euro II emission standard |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
| Front Axles | HF7/HF9, 7000kg/9000kg |
| Rear Axles | ST13/ST16/HC16 |
| Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
| Tires | 12.00-20 tube Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW15710/HW18710,10 speed |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
10 ton |
| Driver's Cab | H16 Standard cab with single bunk |
|
Water tank volume: 10m³, single compartment Thickness:5mm |
|
Competitive Advantage:
1. After service can be dealt within 48 hours.
2. We always keep high efficiency and products are according to your requirements.
3. Guaranteed high quality and competitive price.
4. Have warranty service for one year and provide maintenance for a life.
5. We have roundly passed the ISO9001-2008, 3C, BV and SGS.
6.We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation.
