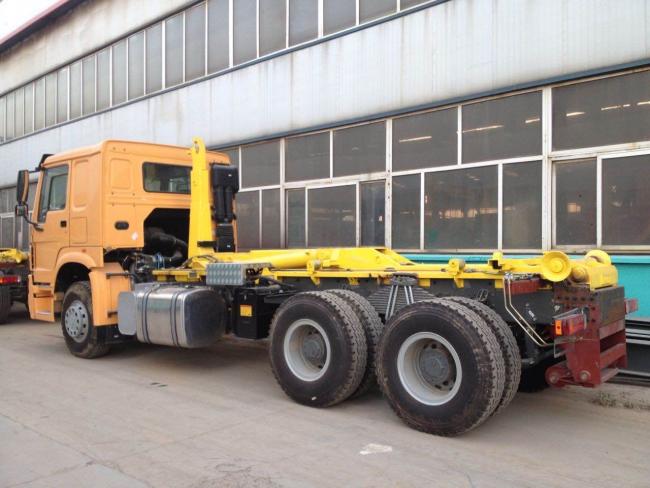

Sinotruk Howo Hook Lift Garbage Collection Truck 25 Tons 6x4 No Secondary Pollution
25 TONS SINOTRUK HOWO 6X4 Hook lift Garbage Truck one bed model: ZZ1257M4347C color optional
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
- 25T
- Product No.: QDZ5250ZXXZH
- Views : 198
| Main Specification of Truck | Main Specification of Hook | |||
| Model | ZZ1257M4347C | Max. Lifting Force | 17t | |
| Engine | Brand SINOTRUK | Height of Hook | 1570mm | |
| WD615.97C Euro III(Ⅱ/Ⅲ/Ⅳoptional) | Lifting Up Time | ≤40s | ||
| Gross Vehicle Weight | 25000kg | Lifting Down Time | ≤50s | |
| Dead Weight | 11070kg | Discharging Time | ≤50s | |
| Tyres | 12.00R20 | Discharging Angle | 50° | |
| Cab | HW76 Air-condition one-sleeping bed(two sleeping bed is optional) | Length Range of Garbage box(mm) | 5500--6400 | |
| Rated engine power | 213kW/2200r/min | |||
| Front Axle | HF7 | Hydraulic System Pressure | 30MPa | |
| Rear Axle | HC16 | |||
| Transmission | HW19710 | Locking Device of Garbage Box | external hydraulic locking | |
| Lock type of reardoor | Mechanical type | |||
| Overall Dimension(mm) | Changeable according to the body | |||
| Notes:The quotation is valid in 30 days. | ||||
Competitive Advantage:
Compressed garbage truck is produced by using Germany technology, and has outstanding technical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic
degrees, quick loading speed, convenient, safe and reliable operation, and hasn’ t secondary pollution.
The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed
garbage truck uses compartment and truck separation, is equipped with several compartments for one truck, and can be used as small garbage transfer station.
