5-42km/h Small Motor Grader For Country Roads Building / National Defense Engineering
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
SINOTRUK HOWO
Product Description

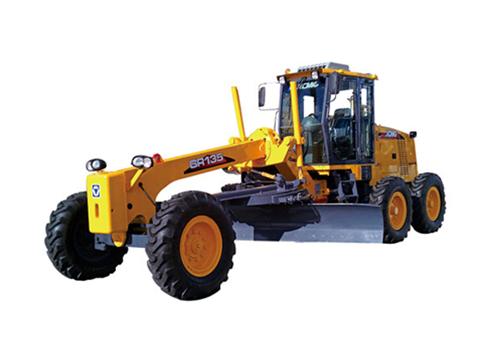

XCMG mini CE Motor Grader GR135 Engine model 6BT5.9 Travelling speed forward5,8,13,20,30,42km/
The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..
Performance and characteristic
| Basic specification | |
| Engine model | 6BT5.9 |
| Rated power/speed | 100/2200kw/rpm |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 11000kg |
| Performance specification | |
| Travelling speed ,forward | 5,8,13,20,30,42km/h |
| Travelling speed ,reverse | 5,13,30km/h |
| Tractive force(f=0.75) | 61.3KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
| Biade | |
| Maximum lift above ground | 410mm |
| Maximum depth of cutting | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3710×610mm |
