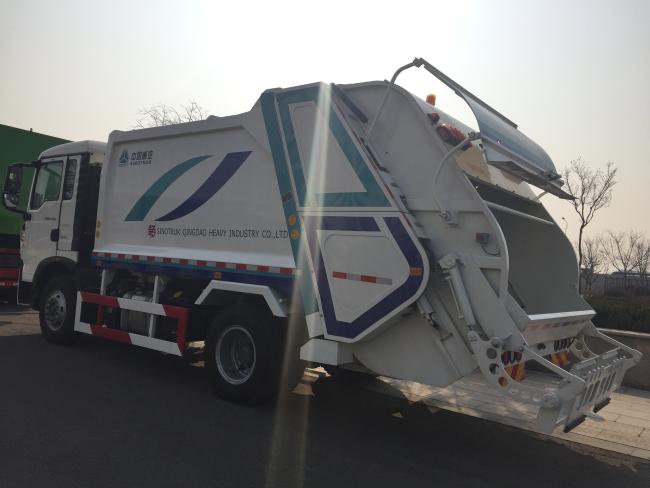

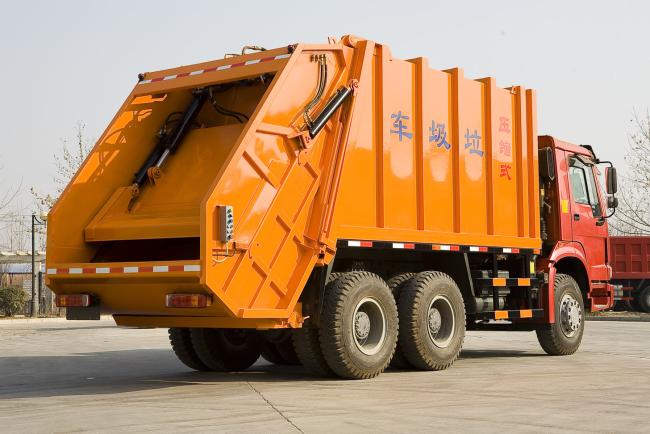

SInotruk Howo 6x4 10 wheel 12cbm Garbage Compactor Truck 371 hp



Product photos



Product details

Chassis No:ZZ1257M4647A
Brand: HOWO
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: HOWO cab HW76 ( flat head, normal-roof , single sleeper, A/C)

Engine model: WD615.47 EURII
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. output: 371hp@2200rpm
Max torque: 1200NM@1200-1600rpm
Bore/Stroke(mm):126/130
Mean Position Speed: 9.53m /s
Compression ratio:15.5:1
Specific fuel consumption: 198g /Kwh

Gear box: HW19710
Clutch: Φ430 pull-type diaphragm clutch
Steering: ZF8118

Front axle: HOWO Front axle 7t
Rear axle: HC16
Tyre : 12.00R20 (rim: 8.5-20)
No of tyre: 10+1
Max. speed (km/h): 102
Max. gradeability(%): 28
Kerb. mass: 11000 kg
Total mass: 25000kg
Wheel base (mm): 4600+1350
Fuel tank(L):400L Tank
Front overhang (mm):1500
Rear overhang (mm): 2600
Front track (mm): 1958
Rear track (mm): 1830
Approach angle: 16 degree
Departure angle: 15 degree

Capacity of Garbage Truck: 12m3
