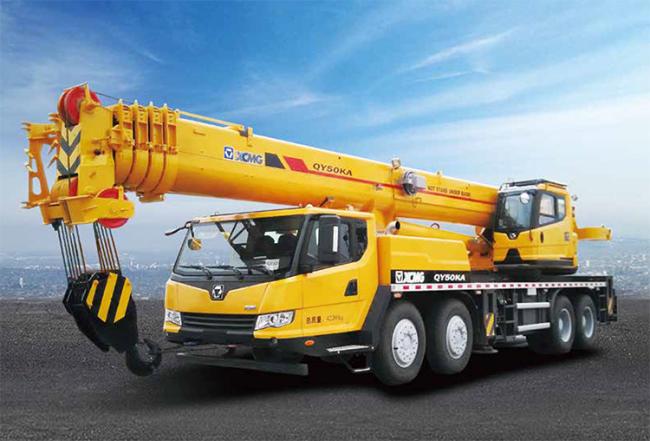

Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic
Price:
Negotiable
MOQ:
1unit Truck Mounted Crane
Delivery Time:
20days
Brand:
xcmg Truck Mounted Crane
Product Description
Heavy Lift Mobile Truck Mounted Crane QY50KA 50 Ton Rc Chinese Hydraulic
Ⅰ.Main Technical Data Table in Travel configuration
Truck Mounted Crane
| Description | Unit | Parameter value | |
| Overall length | mm | 13930 | |
| Overall width | mm | 2780 | |
| Overall Height | mm | 3630 | |
| Axle base | 1st ,2nd axle | mm | 1470 |
| 2nd ,3rd axle | 4300 | ||
| 3rd ,4th axle | 1350 | ||
| Wheel Base | mm | 2304+2075 | |
| Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | |
| Front extension/rear extension | mm | 2131/226 or 2144/226 | |
| Total vehicle mass in travel configuration | kg | 42200 | |
| Axle load | Front axle | kg | 16200 |
| Rear axle | 26000 | ||
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1300-1600 | |
| Max. travel speed | km/h | 85 | |
| Min. steady travel speed | km/h | 2~3 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 327 | |
| Max. grade ability | % | 42 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 15 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
| Oil consumption per 100km | L | 40 | |
| Exterior noise level during acceleration traveling | dB (A) | ≤88 | |
| Noise level at seated position | dB (A) | ≤90 | |
Ⅱ.Main Technical Data Table for Lifting Operation
| Description | Unit | Parameter value | |||
| Max. total rated lifting capacity | t | 50 | |||
| Min. rated working radius | m | 3 | |||
| Turning radius at turntable tail | mm | 3800 | |||
| Max. load moment | Base boom | KN.m | 2009 | ||
| Fully-extended boom | 1129 | ||||
| Outrigger span | Longitudinal | m | 6.1 | ||
| Lateral | 7.1 | ||||
| Hoist height | Base boom | m | 11.9 | ||
| Fully-extended boom | 44 | ||||
| Fully-extended boom + Jib | 58.1 | ||||
| Boom length | Base boom | m | 11.4 | ||
| Fully-extended boom | 43.5 | ||||
| Fully-extended boom + Jib | 59.5 | ||||
| Jib offset angle | ° | 0, 15, 30 | |||
| Time for boom raising | s | ≤40 | |||
| Time for boom extending fully | s | ≤90 | |||
| Max. slewing speed | r/min | ≥2.0 | |||
| Outrigger extending and retracting time | Outrigger | Extending | s | ≤35 | |
| Simultaneously | |||||
| Retracting | ≤30 | ||||
| Simultaneously | |||||
| Outrigger | Extending | ≤40 | |||
| Simultaneously | |||||
| Retracting | ≤35 | ||||
| Simultaneously | |||||
| Hoisting speed | Main winch | No load | m/min | ≥130 | |
| (single line | Auxiliary winch | No load | ≥130 | ||
| Exterior noise level | dB (A) | ≤118 | |||
| Noise level at seated position | dB (A) | ≤90 | |||
