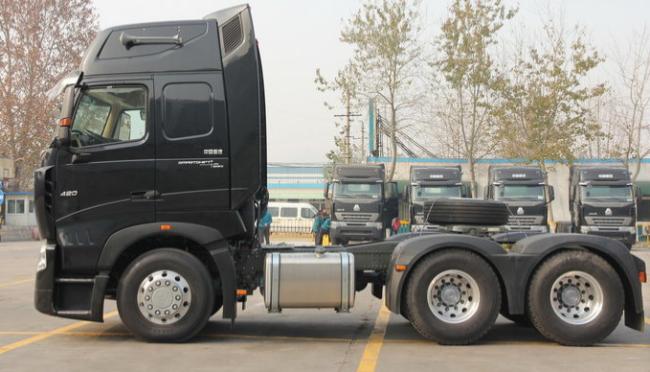

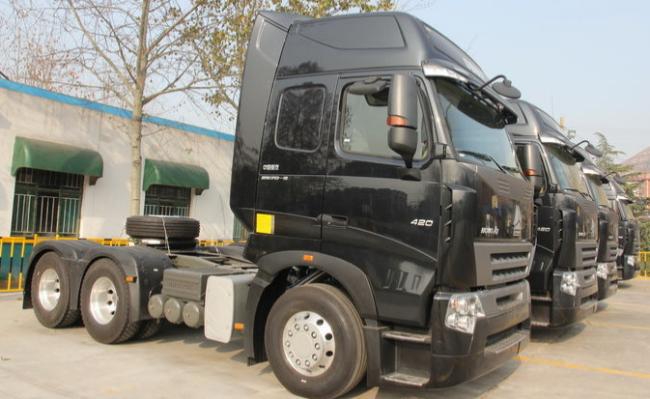

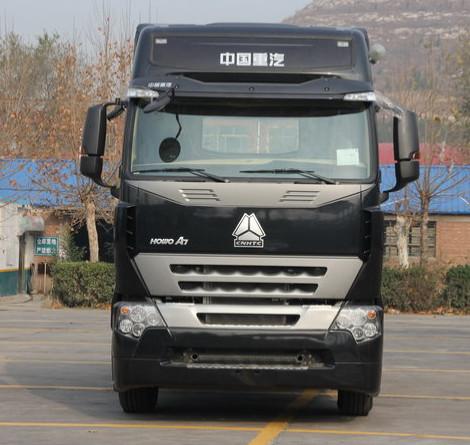

A7 420hp Lhd 6x4 Sinotruk Tractor Truck With 3.5 Inch Kingpin Euro2
Sinotruk howo 6x4 heavy duty 10 wheeler tractor truck
Feautures:
1. Powerful engine
2. Durable quality
3. large loading capacity 20-80T
4. Competitive price
| Model | ZZ4257M3241W | ZZ4257N3241W | ZZ4257S3241W | ZZ4257V3241W | ||
| Product code | 4257602 | 4257603 | 4257604 | 4257605 | ||
| Engine | Model | WD615.87 | WD615.69 | WD615.47 | D12.42 | |
| Horsepower | 290 | 336 | 371 | 420 | ||
|
Maximum output Kw/r/min |
213/2200 | 247/2200 | 273/2200 | 309/2000 | ||
|
Maximum torque N.m/r/min |
1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | 1820/1100-1500 | ||
| Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter- cooled, direct injection |
|||||
| Bore x Stroke | 126x130mm | 126x155 mm | ||||
| Valve | 2 | 4 | ||||
| Displacement | 9.726L | 11.596L | ||||
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan |
||||||
|
Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery) |
||||||
| Cab |
SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor,stereo radio/cassette recorder,left driving, air conditioner, Option: right driving; color; Wind guide cover |
|||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||||
| Transmission |
SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2) |
|||||
| Front Axle |
SINOTRUK HF7 Front Axle,new 7-ton front axles of equipped with drum brakes Option: disc brake |
|||||
| Steering |
German ZF8098 Steering Gear Box ,hydraulic steering with power assistance, Ratio:22.2-26.2 |
|||||
|
Brake System |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake |
|||||
|
Wheels & Tyres |
Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre ;295/80R22.5 tubeless;12R22.5 tubeless; 315/80R22.5 tubeless |
|||||
