China White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard for sale

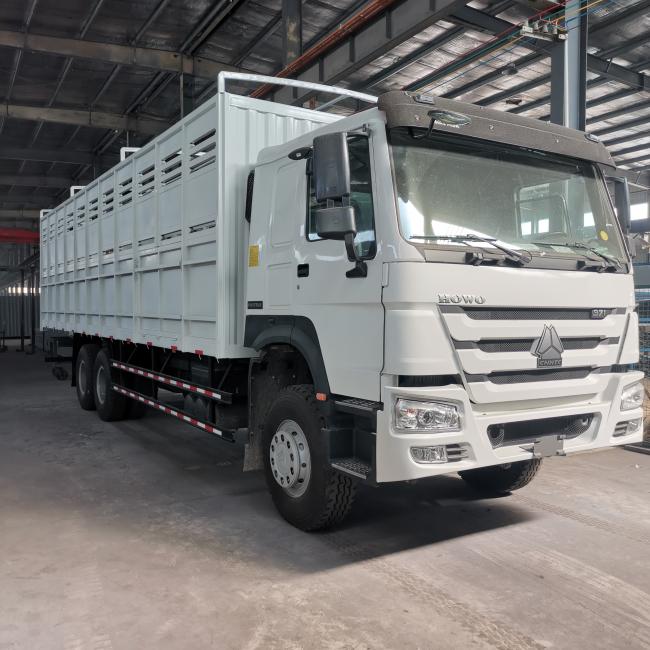

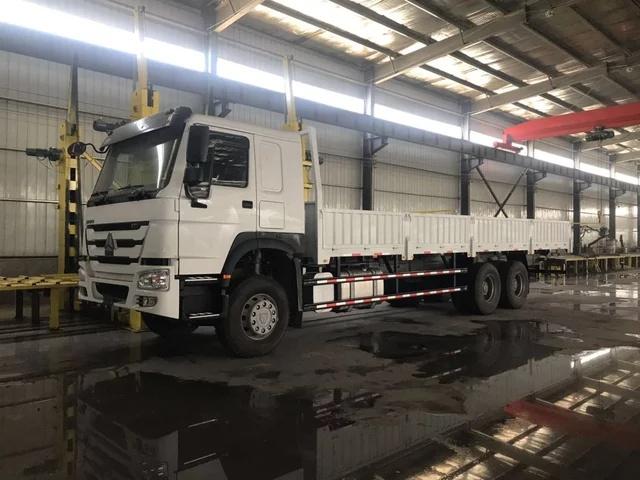

White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard

Name: White SINOTRUK HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard
Brand: Jinan Heavy Truck Import & Export Co., Ltd.

Price Negotiable

Price: $12000-35000

MOQ: 1

Delivery Time: 5-8 days

Brand: Cargo Truck

Product Description

SINOTRUK HOWO 6X4 CARGO TRUCK Best Price Euro II emission standard

Products Description

Engine	Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine
Clutch	SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission	Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	New HF7 series, with drum brake system Steering with double T-cross section beam
Rear Axle	ST16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 4.3
Chassis	Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel
Steering	ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1
Braking System	Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Wheel & Types	Rims: 8.5-20,10 hole-steel Types: 12.00R20
Driver’s cab	Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel.
Electrical System	Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Dimensions in mm	Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Overall Dimension (mm)	4300+1400 2022/2041 1830 1500 1920 16 23 9120×2496×2958
Weight in kg	Permissible loading capacity (kg) Dead weight (kg) Gross vehicle weight (kg) Front axle loading capacity (kg) Rear axle loading capacity (kg)	15830 9170 25000 7000 2×9000
Performance	Maximum driving speed (km/h) Maximum gradeability (%) Minimum ground clearance (mm) Minimum turning radius (m) Fuel consumption (L/100km)	102(reference data) 62 314 10.8 36(reference data)
