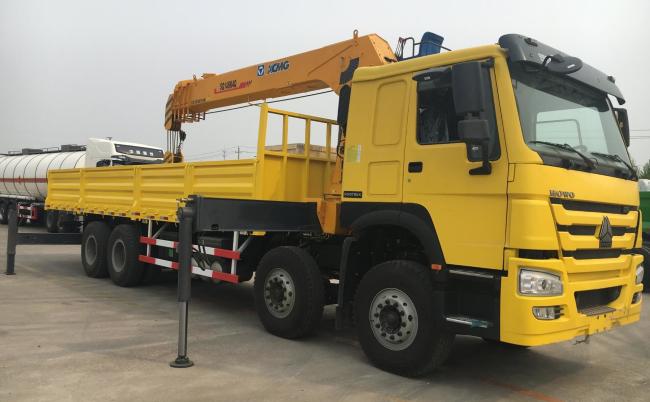

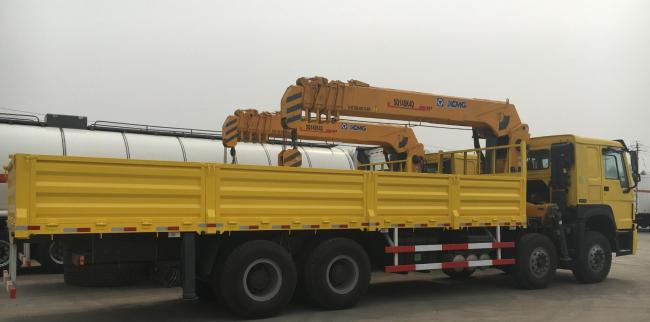

SQ10SK3Q 25TM Telescoping Boom Crane , Dump Truck With Crane Low Power
XCM-G SQ10SK3Q New 25TM 10 Tonne Telescoping Crane for Sale
XCM-G SQ10SK3Q
Main parameters:
Max Lifting Moment: 25t.m
Max Lifting Capacity: 10000kg
Optional parts:
* Moment limited device
*Remote control equipment
*Anti-overwind magnet valve
*High seat on column
*Assistant stabilizer leg
OUR SERVICE:
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.
| Model | SQ10SK3Q | Unit | ||||
| Max Lifting Capacity | 10000 | kg | ||||
| Max Lifting Moment | 25 | T.M | ||||
| Recommend Power | 28 | kw | ||||
| Max Oil Flow of Hydraulic System | 63 | L/min | ||||
| Max Pressure of Hydraulic System | 26 | MPa | ||||
| Oil Tank Capacity | 160 | L | ||||
| Rotation Angle | All Rotation | |||||
| Crane Weight | 3800 | kg | ||||
| Installation Space | 1150 | mm | ||||
| Choice of Chassis | DFL1250A9 ; CA1240PK2L7T4EA81; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E; EQ1252GFJ; DFL1253AX; | |||||
| SQ10SK3Q Lifting capability diagram | ||||||
| Working radius (m) | 2.5 | 4.5 | 7 | 9 | 12 | |
| Lifting capacity (kg) | 10000 | 5500 | 3200 | 2300 | 1500 | |
