20 Ton Sinotruk Howo 8x4 Truck Mounted Crane Straight Boom

Price Negotiable
Price: $41000 unit
MOQ: 1unit
Delivery Time: 30days
Brand: XCMG
Product Description

Crane Truck 20Ton





With 5-10% discount!
This truck is available!!
We can deliver on time!!!

1.products description



Model

 SQS500-6

Max Lifting Capacity(kg)
20000
Max Lifting Moment(T.M)
50
Power(kw)
60
Max Oil Flow of Hydraulic Systerm(L/min)
120
Max Pressure of Hydraulic Systerm(MPa)
26
Oil Trank capacity(L)
260
Crane weight(kg)
7100
Installation Space(mm)
1300
Rotation Angle(°)
360
Chass
SINOUTRUK HOWO 8*4 CARGO TRUCK
Chass Engine
WD615.47, 371hp
Chass Emission
EUR2
Tire
12.00R20
Front Axle
HF9
Rear Axle
HC16

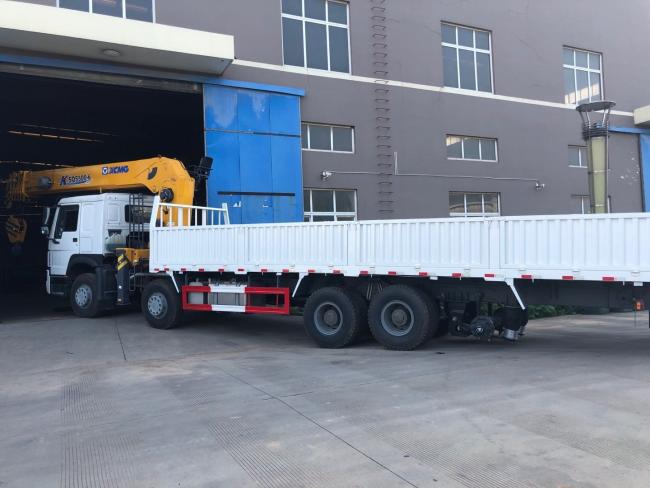

2.Products show

Telescoping Boom Crane



Features & Advantages

1.Single cylinder synchronization guy cable technology make work efficiency more higher than before . 2.Advanced development means make sure that the design is very reliable . 3.The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity . 4.Compact Hinge point design take up smaller space . 5.The work is more safety after fitted with overwind alarm equipment . 6.The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system . 7.Float three-point bridge structure design can lower the accessional stress on the chassis when traveling . 8.Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation . 9.Anti-slewing impulse equipment that make vehicle running safely .

3.Delivery

4.Company Profile
