China WD615.69 336hp Heavy Duty Dump Truck For Construction Sites for sale

WD615.69 336hp Heavy Duty Dump Truck For Construction Sites

Price Negotiable

Price: 36000

MOQ: 1 unit

Delivery Time: 30 work days

Brand: Sinotruk HOWO

Product Description

Sinotruk HOWO 6*4 dump truck 10 wheeler dump truck 10wheelers tipper 336hp horsepower 3axle

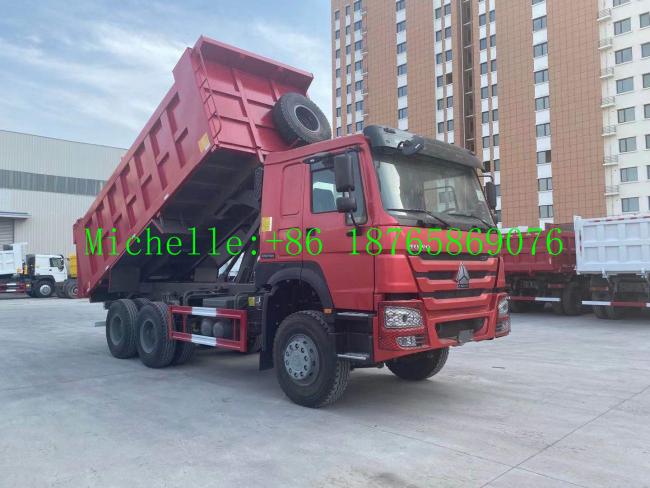

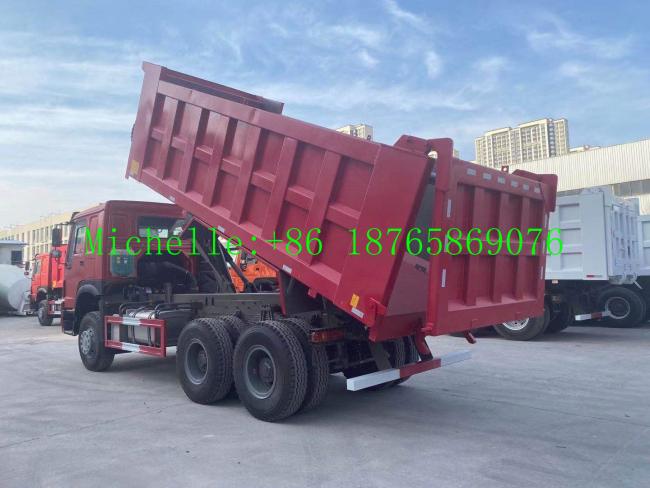

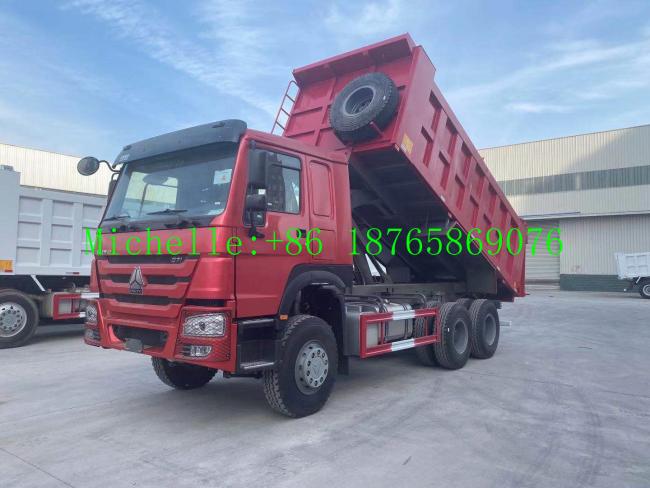

HOWO 6*4 Dump Truck

Product detail:

Model	ZZ3257N3847A
Drive type	6x4
Brand	HOWO
Engine	WD615.69 336hp EUR2
Engine Type	6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Displacement(L)	9.726
Maximum output (Kw/r/min)	260/2200
Valve	2
Rated Quality(kg)	12600,12410
Kerb mass (kg)	12270,12460
Wheel base (mm)	3825+1350
Tire	11.00-20,12.00-20 18PR
Overhang(front/rear)	1500/1939,1500/1870
Appearance dimensions (mm)	854524963170
Box dimensions(mm)	560023001090
Max. speed (km/h)	75
Passengers	2
Approach/Departure(°)	19/23
Total mass(kg)	25000
Fuel	Diesel
Fuel tank capacity (L)	300L
Axle	3
Axle Load	7000/18000
Front axle	SINOTRUK HF9 Front Axle
Front axle loading capacity (kg)	9000
Rear axle	SINOTRUK HC16 Heavy reduction drive axle
Rear axles loading capacity(kg)	2*16000
Front Tread	2022,2041
Rear Tread	1830/1830
Transmission	HW19710, 10 forward&2 reverse Manual
PTO	HW50
Steering	German ZF8098 Steering Gear Box (left-hand drive)
Cab	HOWO HW76 Cab, Lengthen cab Single sleeper A/C

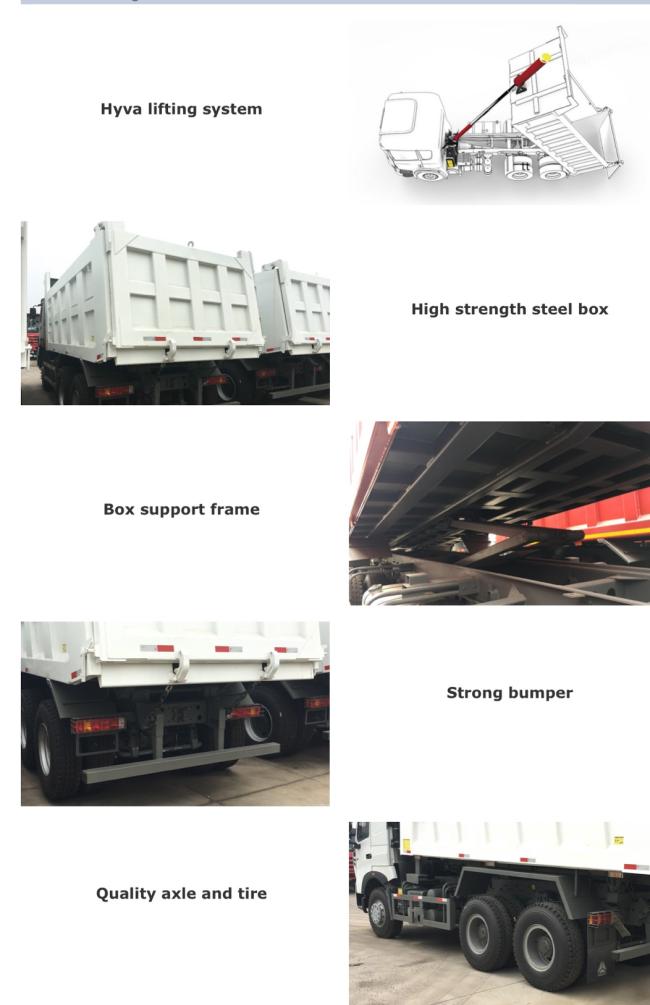

Dump Truck

1.Function:Dump trucks are mainly used to transport bulk cargoes (such as sand, soil, ore, and crops), and can also be used to
transport finished goods.
2.Main places of use:
building materials factories, mines, construction sites, etc.

Our advantages

Headlight structure

-Crystal lamp shell & strong brightness & strong penetration & High life

Full control of driving environment,

-Rearview mirror + Road mirror +Down view mirror

The widest large curved windshield in China.

-Wide view, no blind spots, more secure.

The widest cab in China: More than 2.5meters

-Coefficient of insurance in creased greatly.Double buckle of diver seat belt.

-Reduce driving fatigue: 4point full- floating air suspension, Domestic original stabilizing device.

-Adjustable steering wheel with various heights and angles.
