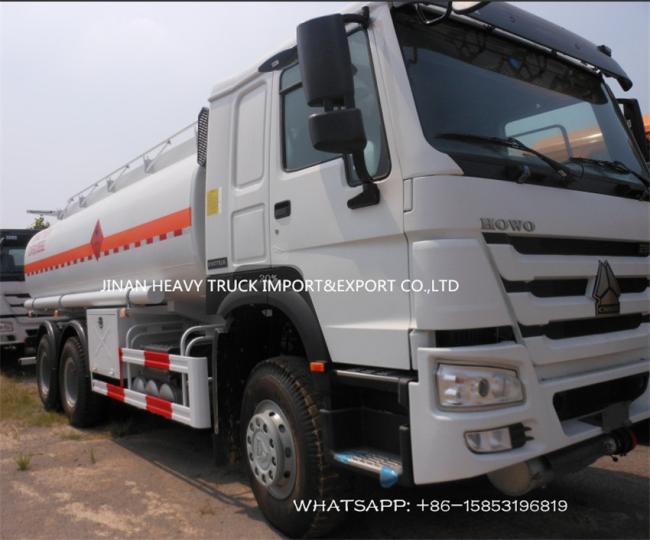

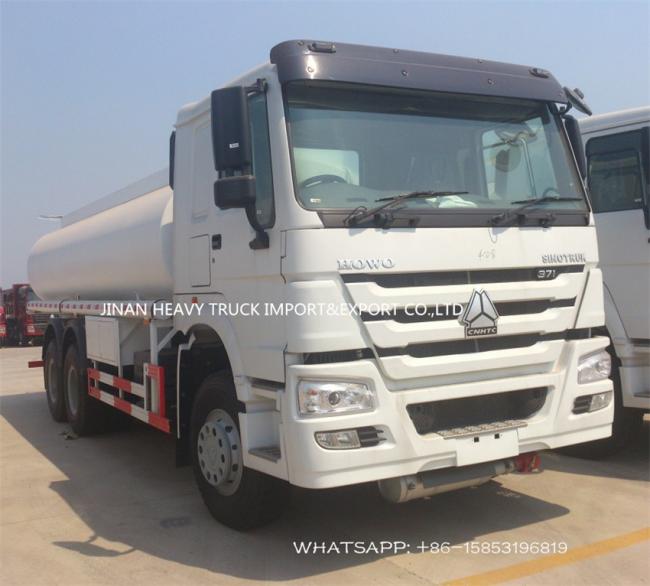

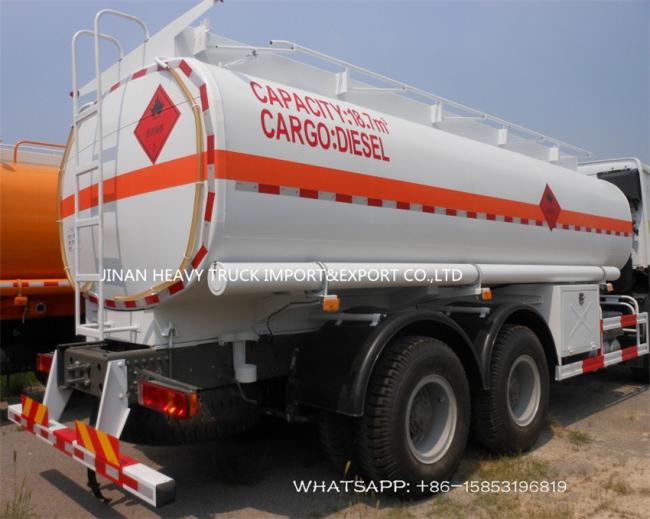

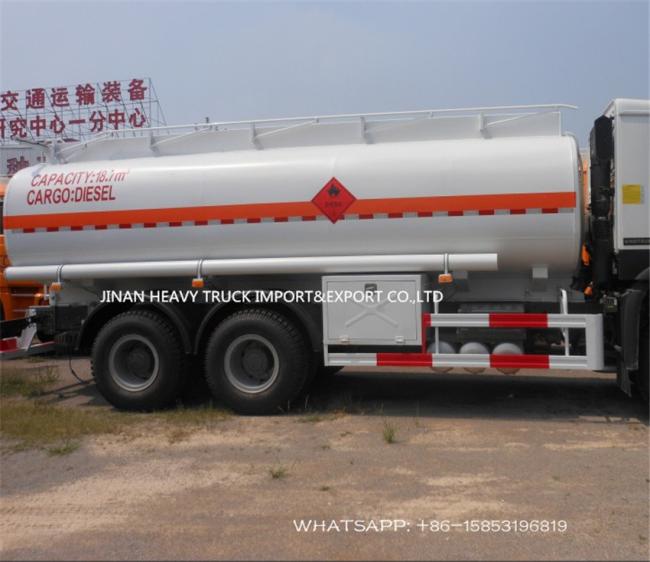

Sinotruk Howo Heavy Cargo Truck 20cbm Oil Tank Transport Truck For Philippines Market
SINOTRUK HOWO COMMERCIAL TRUCK 20CBM OIL TANK TRANSPORT TRUCK FOR PHILIPPINES MARKET
| Model | ZZ1257N5041W | |
| Cabin | HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler | |
Engine | Model | WD615.47 |
| Horse Power (Hp/rpm) | 371/2200 | |
| Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
| Displacement (L) | 9.726 | |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine | |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
| Tire | 12.00R20 | |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank | |
| Dead Weight (kg) | 12530 | |
| Gross Vehicle Weight (kg) | 33000 | |
| Gross Combination Weight (kg) | 80000 | |
| Overall Dimension(L*W*H)(mm) | 8145×2560×3450 | |
| Wheelbase(mm) | 5000+1350 | |
| Front/Rear Overhang( mm) | 1500/725 | |
| Wheel Track(Front/Rear)(mm) | 2022/1850 | |
| Min. Ground Clearance(mm) | 314 | |
| Approach/Departure Angle( °) | 16/70 | |
| Max. Speed (km/h) | 92 | |
| Max. Gradebility (%) | ≥40 | |
| Bucket Size | 20000 liters water tank | |
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2. How long delivery time ?
A:15-25 days;If you voltage special, we need costomized refrigeration equipment, need 45 days.
Q3. What logistics ways can we work for shipment?
A:We can ship truck/bus by various transportation tools: 1. For 90% of our shipment, we will go by sea,
to all main continents such as South America, Middle East, Africa, Oceania and Europe etc, either by container
or RoRo/Bulk shipment. 2. For neighborhood countries of China, such as Russia, Mongolia, Kazahkstan, Uzbekistan
ets …, we can ship it by road or railway.
Q4. Could your factory accept customized ?
A:We can do customized dimension according to customers'requirements. We have access to all the leading
Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet
your business requirements.
Q5. How about the after-sale service? A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp,
etc. (2) To solve the problems with videos/pictures. (3) One year warranty for spare parts change.
