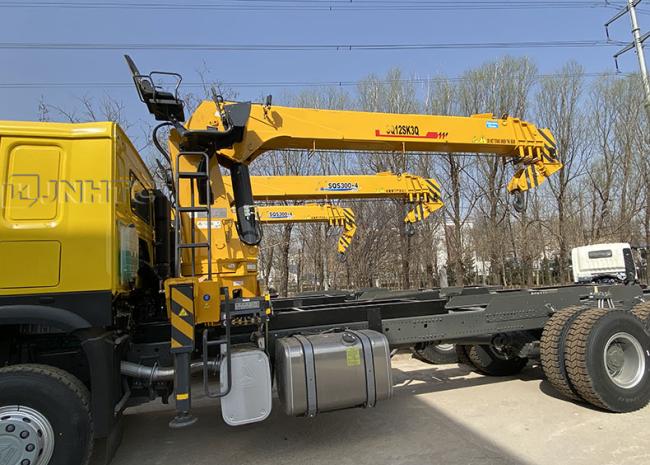

Sinotruk Crane Boom Truck 6x4 10 Wheels 12 Ton Straight Arm
Sinotruk Crane Boom Truck 6x4 10wheels 12ton Boom Straight Arm Crane Truck
SINOTRUK HOWO 6X4 Straight Crane Cargo Truck
3, Hoisting overwinder device If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder
device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope. 4,Slewing locking device Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.
According to clients' requirements, we can customize different loading capacity and volume.
|
Truck model
|
ZZ1257M4641A
|
|
Maximum output
|
371hp (196 Kw) at 2200 rpm
|
|
Engine model
|
WD615.47, Euro II emission standard
|
|
Clutch
|
Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance
|
|
Front Axles
|
HF9, 9000kg
|
|
Rear Axles
|
HC16;16000kg
|
|
Steering
|
ZF power steering, model ZF8098, hydraulic steering with power assistance
Ratio: 26.2 |
|
Tires
|
12.00R20
|
|
Air conditioner
|
With safety belts for driver and co-driver;With air conditioner
|
|
Transmission
|
HW19710, 10 forward&2reverse
|
|
Export Markets
|
South America, Southeast Asia, Africa, Mid East, Eastern Asia
|
|
Loading Capacity
|
20-40 ton
|
|
Driver's Cab
|
HW76 cab,one bunk
|
|
Frame
|
High-strength U-profile frame, all cold riveted cross members and reinforced subframe
|
|
Front suspension
|
semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
|
|
Rear suspension
|
semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
|
|
Spare wheel carrier
|
with one spare wheel
|
|
Crane
|
|
|
type
|
straight arm 3 section
|
|
Operating weight
|
10-20ton
|
Product Description:
1. Competitive price
2. Strong body
3. Quick parts
4. Truck sale from factory
What we can do for customers:
1. The satisfied product with high level standard;
2. The full aspect service from order to shipping;
3. Give customer most suitable advice when customer has special needs for your transportation or construction;
4. Help customer to get the related spare parts of trailer or tractors if customer needs.
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q: How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you to confirm.
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
