Super Precision Spindle Bearing 110BAR10STYNDBLP4 110BAR10STYNDBLP4A 110x170x54
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
3-7work days
Brand:
QIEAL ZH
Product Description
Super Precision Spindle Bearing 110BAR10STYNDBLP4 110BAR10STYNDBLP4A 110x170x54
Features for NSK 110BAR10HTYNDBLP4A Spindle bearing:
Angular Contact Thrust Ball Bearings for Ball Screw Support
High precision angular contact thrust ball bearings to support precision ball screws, have better performance than earlier combinations of angular contact ball bearings or combinations using thrust bearings. They are especially suitable for high precision machine-tool feeding mechanisms and similar appliexcavatorions. TAC B Series (Machine Tool Appliexcavatorions)
TAC02 and 03 Series (Electric Injection Molding Machines)
TAC B and TAC02, 03 Differences
ROBUST series
| Bearing Model |
110BAR10HTYNDBLP4A
NSK high speed Angular contact ball bearing
|
| Appliexcavatorion | Machine Tool |
| Type | Ball Screw Support Ball Bearing |
| number | 110BAR10S 110BAR10H |
| (dxDx2B) | 100x150x45mm |
| Weight | 1.4 KG |
| Lead Time | Within 3 Days |
| Contact |
chen (Ms) |
| SKYPE | QIEAL bearing |
| WhatsApp / Webchat | +86 18620602705 |
| qireal220929@163.com |
Detailed Images

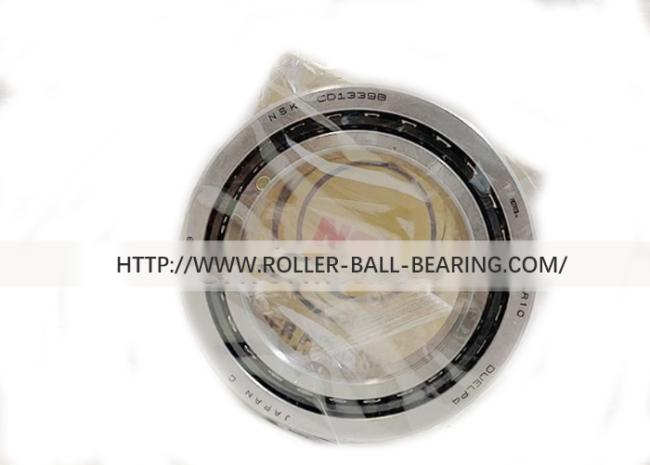

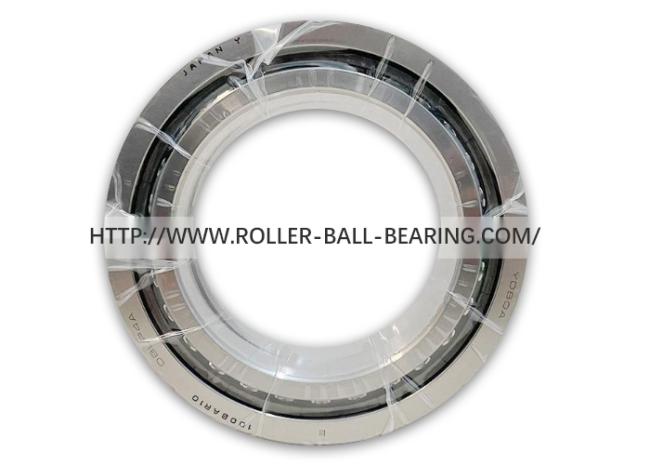

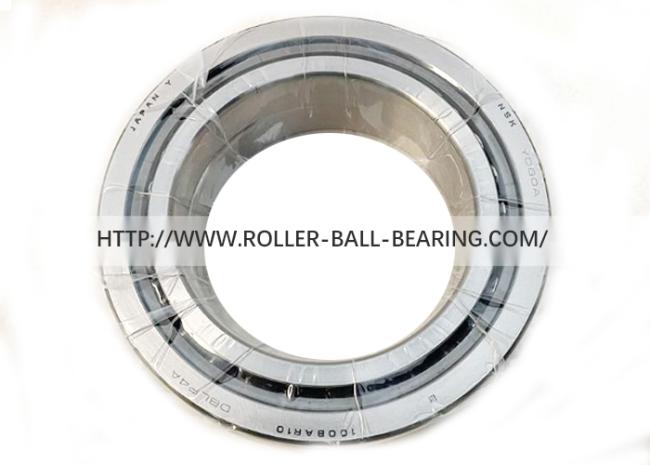

spindle bearing 110BAR10HTYNDBLP4A pictures series

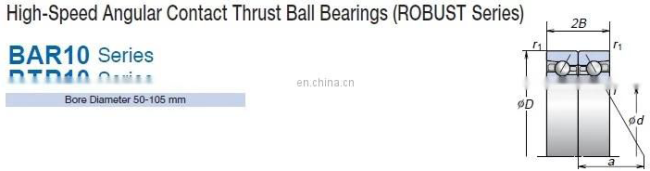

high speed angular contact thrust ball bearing robust series
| ype | (d) | (D) | 2B | Type | (d) | (D) | 2B |
| 50BAR10S | 50 | 80 | 28.5 | 110BAR10S | 110 | 170 | 54 |
| 55BAR10S | 55 | 90 | 33 | 120BAR10S | 120 | 180 | 54 |
| 60BAR10S | 60 | 95 | 33 | 130BAR10S | 130 | 200 | 63 |
| 65BAR10S | 65 | 100 | 33 | 140BAR10S | 140 | 210 | 63 |
| 70BAR10S | 70 | 110 | 36 | 150BAR10S | 150 | 225 | 67.5 |
| 75BAR10S | 75 | 115 | 36 | 160BAR10S | 160 | 240 | 72 |
| 80BAR10S | 80 | 125 | 40.5 | 170BAR10S | 170 | 260 | 81 |
| 85BAR10S | 85 | 130 | 40.5 | 180BAR10S | 180 | 280 | 90 |
| 90BAR10S | 90 | 140 | 45 | 190BAR10S | 190 | 290 | 90 |
| 95BAR10S | 95 | 145 | 45 | 200BAR10S | 200 | 310 | 99 |
| 100BAR10S | 100 | 150 | 45 | 105BAR10S | 105 | 160 | 49.5 |
Shipping
PACKING:bag+box+carton+pallet/wooden case.
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Factory
Packing : 1. Industrial packing 2. Single box +carton +pallets 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
