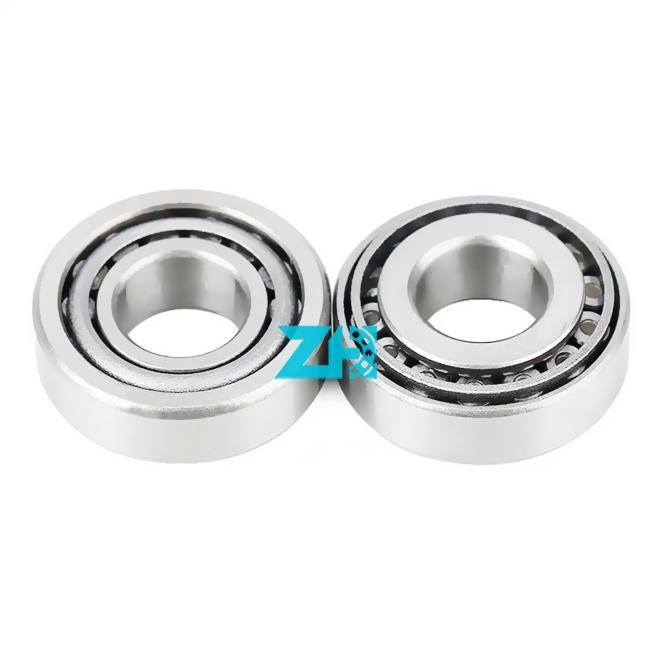

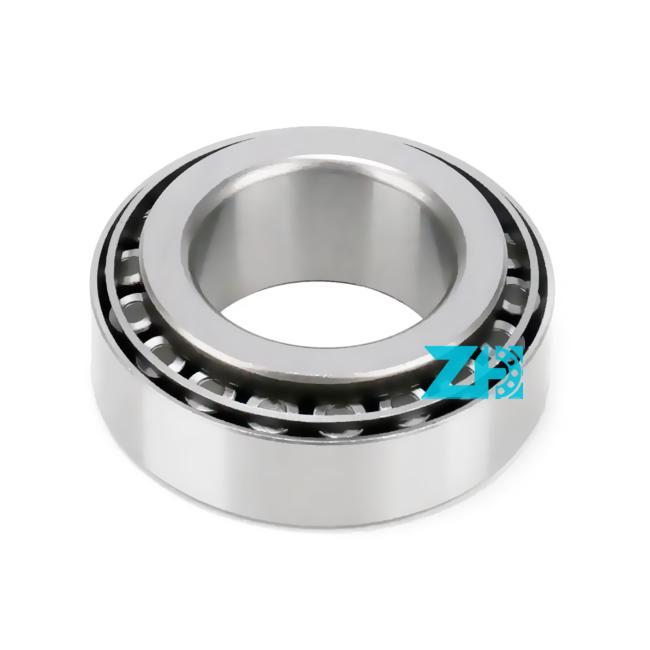

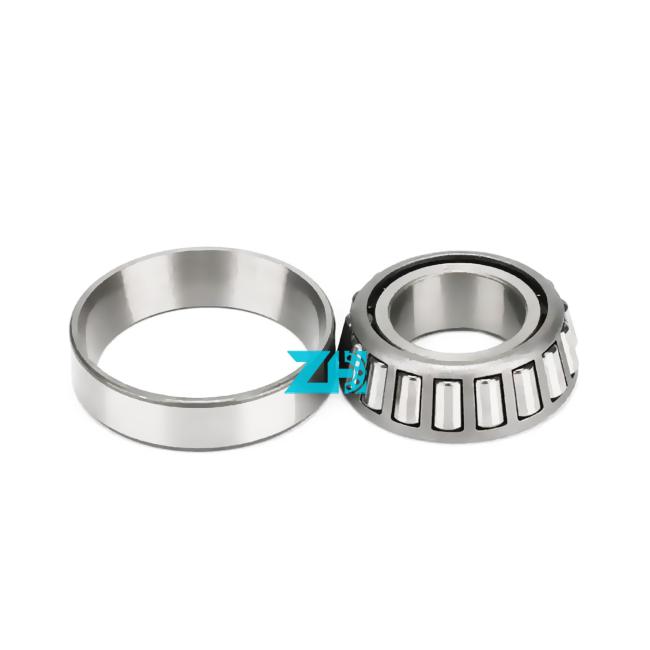

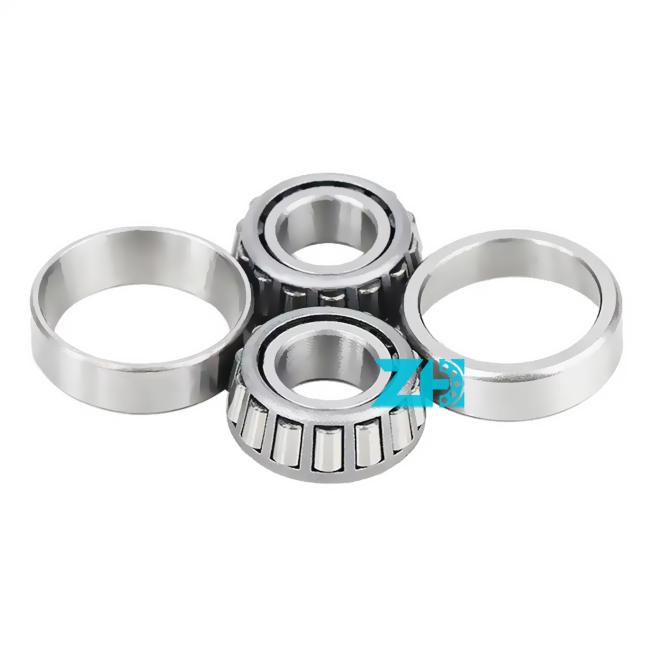

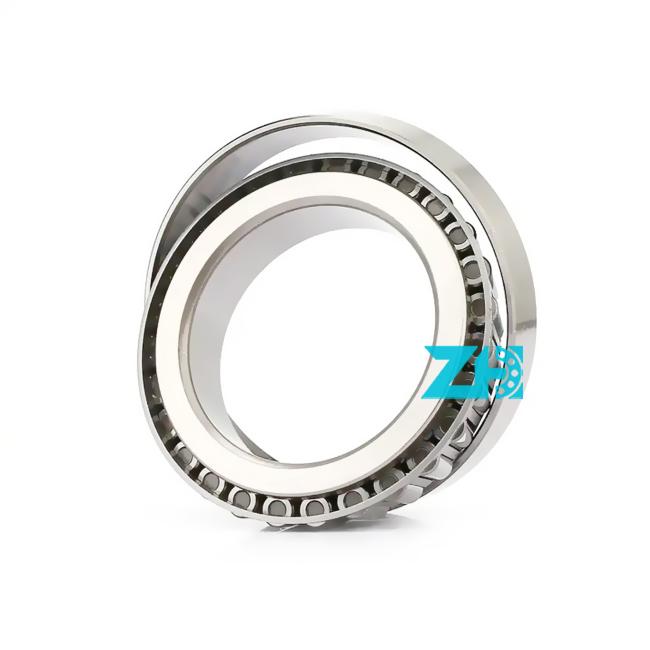

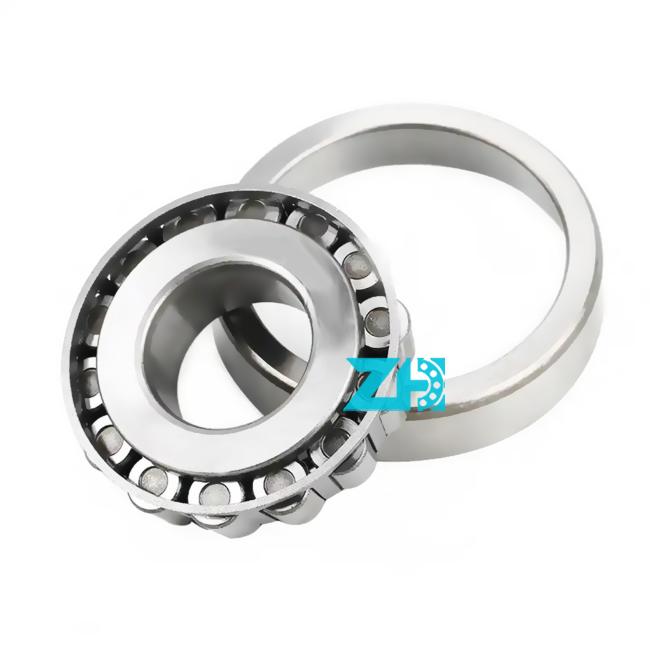

JL69349-10 Taper Roller Bearing 38x63x17mm High Limiting Speed Single Row 69349/10
Taper Roller Bearing JL69349-10 size 38x63x17mm Taper Roller Bearing Factory supply
Taper Roller Bearing JL69349-10 38x63x17mm High Limiting Speed Single Row Taper Roller Bearing 69349/10
Technical Parameters:
| model |
JL69349-10 |
| Size(d*D*B) |
38x63x17mm |
| Type | Taper Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature |
Long Life,Stable Performance and Durable |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Sufficient |
Product Description
Tapered roller bearings typically have a cage or retainer that separates and maintains the proper spacing between the rolling elements. The cage prevents the rollers from contacting each other, reducing friction and wear. Common cage materials include steel, brass, or synthetic resins.
Tapered roller bearings can be used in different arrangements to accommodate specific load and mounting requirements. These arrangements include single-row, double-row, and four-row configurations. Double-row tapered roller bearings have a higher load-carrying capacity and are often used in heavy-duty applications.
Preload is the internal axial force applied to a tapered roller bearing to eliminate clearance and ensure proper contact between the rolling elements and the raceways. Preloading the bearing enhances rigidity, reduces deflection, and improves its ability to handle axial and radial loads. Proper preload is essential for optimal bearing performance.
Other bearing model catalog:
| Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
| EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
| EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
| HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
| HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
| 81606 | 81963CD | 154.0 | 244.5 | 108.0 |
| 46780 | 46720CD | 158.8 | 225.4 | 85.7 |
| 81629 | 81963CD | 160.0 | 244.5 | 108.0 |
| 81630 | 81963CD | 160.0 | 244.5 | 108.0 |
| HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
| 46790 | 46720CD | 165.1 | 225.4 | 85.7 |
| 67780 | 67720CD | 165.1 | 247.7 | 103.2 |
| M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
| 94649 | 94114CD | 165.1 | 288.9 | 142.9 |
| HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
| 46792 | 46720CD | 166.7 | 225.4 | 85.7 |
| 67782 | 67720CD | 168.3 | 247.7 | 103.2 |
| M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
| 94675 | 94114CD | 171.5 | 288.9 | 142.9 |
| 67786 | 67720CD | 174.6 | 247.7 | 103.2 |
| 67787 | 67720CD | 174.6 | 247.7 | 103.2 |
| 94687 | 94114CD | 174.6 | 288.9 | 142.9 |
| HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
| 36990 | 36920CD | 177.8 | 227.0 | 66.7 |
| 67790 | 67720CD | 177.8 | 247.7 | 103.2 |
| 67791 | 67720CD | 177.8 | 247.7 | 103.2 |
| M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
| 94700 | 94114CD | 177.8 | 288.9 | 142.9 |
| HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
| HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
| EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
| H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
| 93708 | 93127CD | 180.0 | 317.5 | 146.1 |
| 67883 | 67820CD | 184.2 | 266.7 | 103.2 |
| 67884 | 67820CD | 187.3 | 266.7 | 103.2 |
| M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
| H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
| 67885 | 67820CD | 190.5 | 266.7 | 103.2 |
| 93750 | 93127CD | 190.5 | 317.5 | 146.1 |
| EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
| 67887 | 67820CD | 192.1 | 266.7 | 103.2 |
| LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
