180*280*74mm 23036CC Bearings used in machine tool gearboxes for tractors Spherical Roller Bearing
23036CC 23036 23036RS 23036ZZ 23036-2RS 23036W 23036CA 23036CB 23036ECK 23036J
P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Production introduction
23036CC owm lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications. High temperature capacity of up to 200°C (392°F) for metallic cage bearings.
(Low price and high quality are the choice of many customers)
Dimensional stability is ensured by a specific heat treatment. A +/- 0.5° misalignment capability, without reducing the load capacity, and up to 1° 30’ in case of low loads.

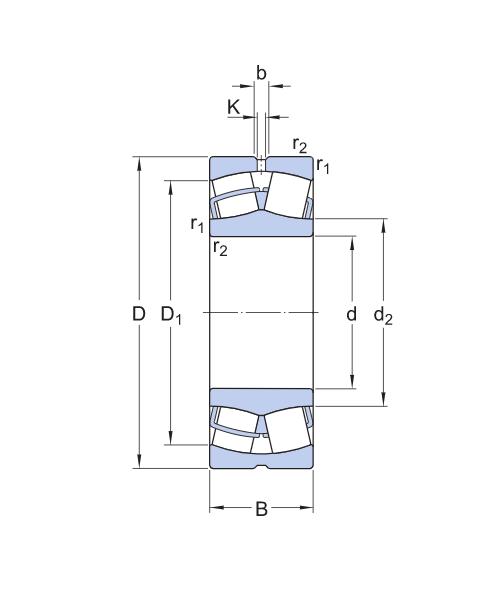

Dimensions
| d |
180 mm
|
Bore diameter |
|---|---|---|
| D |
280 mm
|
Outside diameter |
| B |
74 mm
|
Width |
| d2 |
≈204 mm
|
Shoulder diameter of inner ring |
| D1 |
≈249 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |

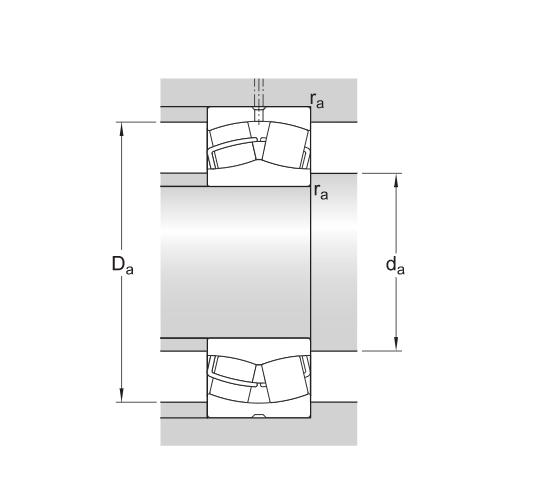

Abutment dimensions
| da |
min.191 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.269 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
883 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 250 kN
|
| Fatigue load limit | Pu |
114 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
-
Most customers chose 23036CC and chose
HPV116 HPV160 k5v200 A8V0140 M2X120 M5X130 K3V112BDP HPV95 PVK-2B-505 HPV091/102 HPV145 HPV132 AP12 A8V0160 M2X150 K3V140DT K3V180 AP2D36 HPV0102 HPV116/145 HPV140 AP2D25 A8V0200 M5X180 K3V180DT k3v140 SDV36 HPV0118 NV111 HPV165 AP2D18 A10VO28 M2X63 K5V140DTP HPV102 A8V160 AP12 K5V80 K7V63 K5V200DTH HPV132 PVB92 VRD63 K5V160DTP HPV118 SG025 NVK45 SBS120 K5V200DPH HPV140 PSVD2-27 SPK10/10 K5V160DP HPV145 SBS140

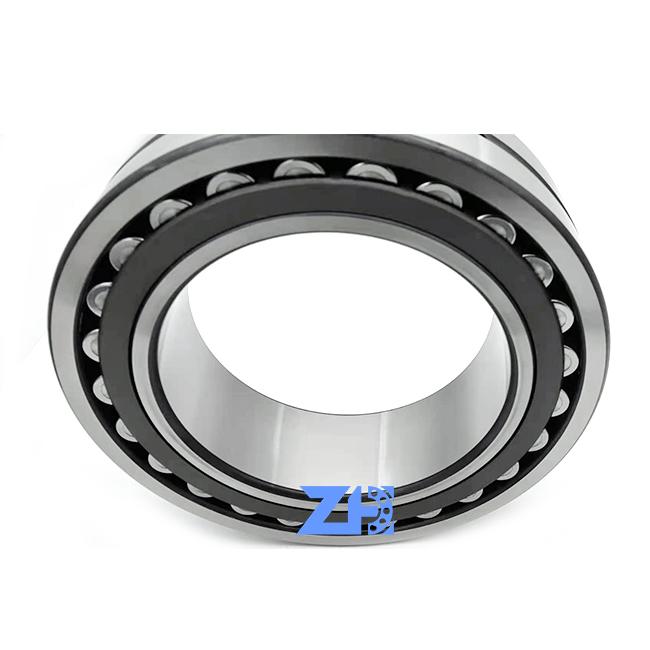

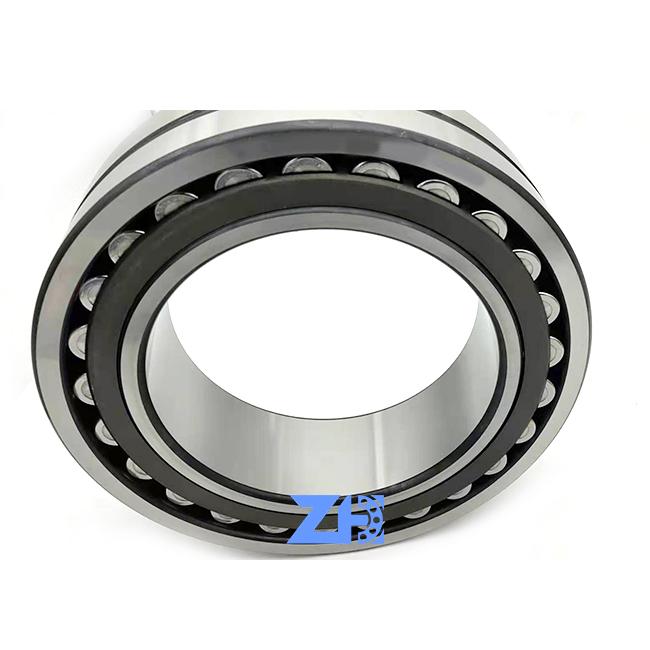

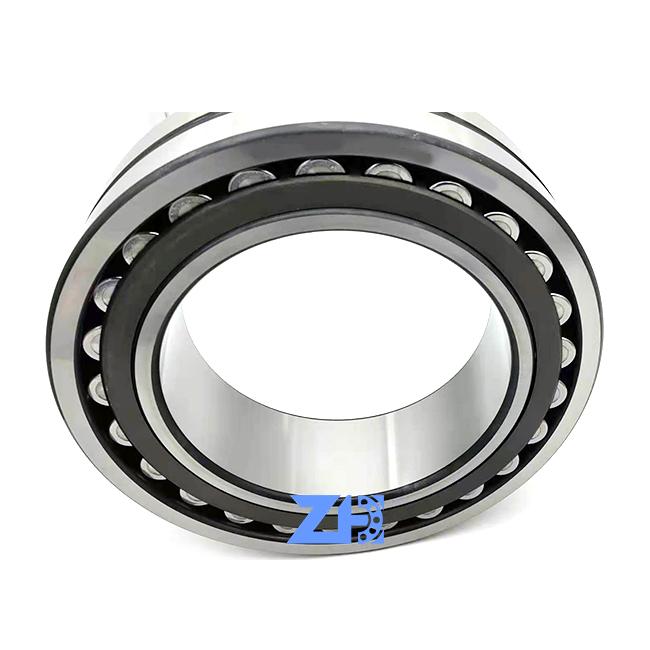

Picture show
![]()
![]()
![]()
![]()
![]()
![]()
