22324MB 22324CA 22324MA Spherical Roller Bearing 120*260*86mm Automobile Bearing
High Quality Spherical Roller Bearing 22324MB 22324CA 22324MA 120*260*86mm Automobile bearing
Product introduction (good Bearing come to We factory)
22324MBSpherical Roller Bearing 22324 with relubrication features are a specialized variant of bearings that are designed to be used in continuous casters in the metals industry. These bearings are optimized to handle heavy loads in both directions, and they are capable of accommodating misalignment and shaft deflections without increasing friction or temperature significantly. One of the main benefits of these bearings is their ability to accommodate misalignment. This feature allows the bearing to maintain its integrity and performance even when the shaft is not perfectly aligned with the bearing housing. Additionally, these bearings have a high load carrying capacity.
Dimensions
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
86 mm
|
Width |
| d2 |
≈152 mm
|
Shoulder diameter of inner ring |
| D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
Abutment dimensions
| da |
min.134 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.246 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
1 019 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 120 kN
|
| Fatigue load limit | Pu |
100 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
22324MB Collection
| NUP205E | NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D |
| M5X130 | 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 |
| NUP306 | 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 |
| NUP208E | NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D156 | 30312D155 | NUP2207140 |
| NUP2212 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206130 |
| NUP206 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309180 |
| NUP308=140 | JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | |
| NUP309 | JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 |
| NUP206 | JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 |
| 6305M | M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP310 |
| NUP207 | M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP307 |
| 30309D | KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP2208 |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | MAG150 |
| NUP307 | MSG-27P | NUP306 | T7FC055 | 11749/11710 | T7FC055 | AP5S53 | TM09 |

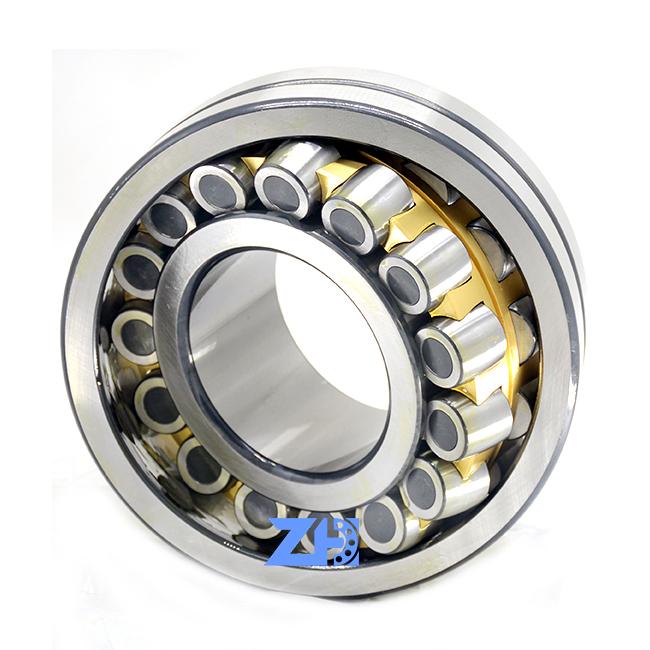

Picture show
![]()
![]()
![]()
![]()
