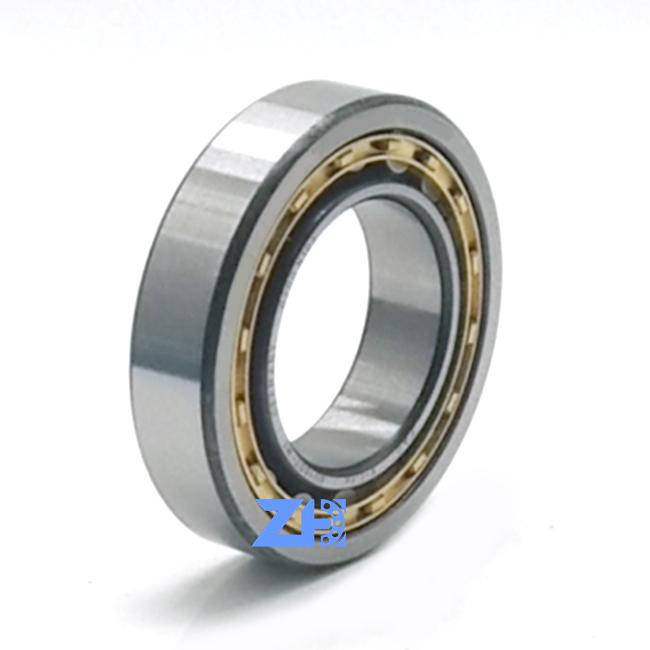

Cylindrical roller bearing 35*62*14mm NU1007M NU1007ECP NU1007C3 CHROME STEEL Material

Cylindrical roller bearing 35*62*14mm NU1007M NU1007ECP NU1007C3 CHROME STEEL Material

Product introduction
Rolling element is a cylindrical roller to the heart of rolling bearings. Cylindrical roller bearing internal structure of the roller was 90 ° perpendicular to each other cross-arranged (which is the origin of the name of cross-roller bearings), the gap between the roller with cage or isolator block can prevent the roller tilt or roller Between the grinding, effectively preventing the increase of the rotation torque.

• High radial load carrying capacity
• Low friction



  Calculation data

  Basic dynamic load rating	C	41.5 kN
  Basic static load rating	C0	38 kN
  Fatigue load limit	Pu	4.55 kN
  Reference speed		13 000 r/min
  Limiting speed		13 000 r/min
  Minimum load factor	kr	0.1
  Limiting value	e	0.2
  Calculation factor	Y	0.6

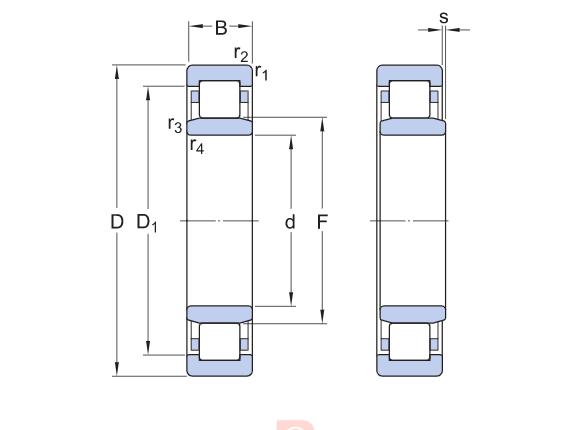

  Dimensions

  d	35 mm	Bore diameter
  D	62 mm	Outside diameter
  B	14 mm	Width
  D1	≈53.95 mm	Shoulder diameter of outer ring
  F	42 mm	Raceway diameter of inner ring
  r1,2	min.1 mm	Chamfer dimension
  r3,4	min.0.6 mm	Chamfer dimension
  s	max.1 mm	Permissible axial displacement

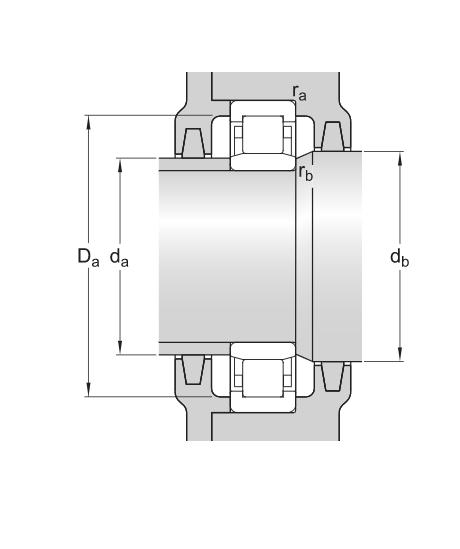

  Abutment dimensions

  da	min.38 mm	Diameter of spacer sleeve
  da	max.41 mm	Diameter of spacer sleeve
  db	min.44 mm	Diameter of shaft abutment
  Da	max.56.5 mm	Diameter of housing abutment
  ra	max.1 mm	Radius of fillet
  rb	max.0.6 mm	Radius of fillet

  Dimensions



  d	35 mm	Bore diameter
  D	62 mm	Outside diameter
  B	14 mm	Width
  D1	≈53.95 mm	Shoulder diameter of outer ring
  F	42 mm	Raceway diameter of inner ring
  r1,2	min.1 mm	Chamfer dimension
  r3,4	min.0.6 mm	Chamfer dimension
  s	max.1 mm	Permissible axial displacement



  We can offer

  NU10/500-M1	NU19/710-M1	NU222-E-TVP2	NU2340-EX-M1
  NU10/560-M1	NU19/710-M1	NU2230-E-M1	NU2344-EX-M1
  NU1005-M1	NU1992-M1	NU2232-E-M1	NU2348-EX-M1
  NU1006-M1	NU1996-M1	NU2234-E-M1	NU234-E-M1
  NU1007-M1	NU202-E-TVP2	NU2236-E-M1	NU2352-EX-M1
  NU1008-M1	NU203-E-TVP2	NU2238-E-M1	NU2356-EX-M1
  NU1009-M1	NU204-E-TVP2	NU2240-E-M1	NU236-E-M1
  NU1010-M1	NU205-E-TVP2	NU2244-EX-M1	NU238-E-M1
  NU1011-E-M1	NU206-E-TVP2	NU2248-EX-M1	NU240-E-M1
  NU1012-M1	NU207-E-TVP2	NU224-E-TVP2	NU244-E-M1
  NU1013-M1	NU208-E-TVP2	NU2252-E-M1	NU248-E-M1
  NU1014-M1	NU209-E-TVP2	NU2256-E-M1	NU252-E-M1
  NU1015-M1	NU210-E-TVP2	NU2260-EX-M1	NU256-E-M1
  NU1016-M1	NU211-E-TVP2	NU2264-EX-M1	NU260-E-M1
  NU1017-M1	NU212-E-TVP2	NU226-E-TVP2	NU264-EX-M1
  NU1018-M1	NU213-E-TVP2	NU2272-E-M1	NU303-E-TVP2
  NU1019-M1	NU214-E-TVP2	NU2276-E-M1	NU304-E-TVP2
  NU1020-M1	NU215-E-TVP2	NU228-E-M1	NU305-E-TVP2
  NU1021-M1	NU216-E-TVP2	NU2304-E-TVP2	NU306-E-TVP2
  NU1022-M1	NU217-E-TVP2	NU2305-E-TVP2	NU307-E-TVP2
  NU1024-M1	NU218-E-TVP2	NU2306-E-TVP2	NU308-E-TVP2
  NU1026-M1	NU219-E-TVP2	NU2307-E-TVP2	NU309-E-TVP2
  NU1028-M1	NU2203-E-TVP2	NU2308-E-TVP2	NU310-E-TVP2
  NU1030-M1	NU2204-E-TVP2	NU2309-E-TVP2	NU311-E-TVP2
  NU1032-M1	NU2205-E-TVP2	NU230-E-M1	NU312-E-TVP2
  NU1034-M1	NU2206-E-TVP2	NU2310-E-TVP2	NU313-E-TVP2
  NU1036-M1	NU2207-E-TVP2	NU2311-E-TVP2	NU314-E-TVP2
  NU1038-M1	NU2208-E-TVP2	NU2312-E-TVP2	NU315-E-TVP2
  NU1040-M1	NU2209-E-TVP2	NU2313-E-TVP2	NU316-E-TVP2
  NU1044-M1	NU220-E-TVP2	NU2314-E-TVP2	NU317-E-TVP2
  NU1048-M1	NU2210-E-TVP2	NU2315-E-TVP2	NU318-E-TVP2
  NU1052-M1	NU2211-E-TVP2	NU2316-E-TVP2	NU319-E-TVP2
  NU1056-M1	NU2212-E-TVP2	NU2317-E-TVP2	NU320-E-TVP2
  NU1060-M1	NU2213-E-TVP2	NU2318-E-TVP2	NU322-E-TVP2
  NU1064-M1	NU2214-E-TVP2	NU2319-E-TVP2	NU324-E-TVP2
  NU1068-M1	NU2215-E-TVP2	NU2320-E-TVP2	NU326-E-TVP2
  NU1072-M1	NU2216-E-TVP2	NU2322-E-TVP2	NU328-E-TVP2
  NU1076-M1	NU2217-E-TVP2	NU2324-E-M1	NU330-E-M1
  NU1080-M1	NU2218-E-TVP2	NU2326-E-M1	NU332-E-M1
  NU1084-M1	NU2219-E-TVP2	NU2328-E-M1	NU334-E-M1
  NU1088-M1	NU221-E-TVP2	NU232-E-M1	NU336-E-M1
  NU1092-M1	NU2220-E-TVP2	NU2330-E-M1	NU338-E-M1
  NU1096-M1	NU2222-E-TVP2	NU2332-E-M1	NU340-E-M1
  NU19/560-M1	NU2224-E-TVP2	NU2334-EX-M1	NU344-E-M1
  NU19/600-M1	NU2226-E-TVP2	NU2336-EX-M1	NU348-E-M1
  NU19/670-M1	NU2228-E-M1	NU2338-EX-M1	NU352-E-M1

NU1007M Collection
