23160CA 23160CCW 23160CCA23160ECK 23160RS 23160ECT 23160X 23160K 23160XXW  P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing


Product introduction
23160CA The spherical roller bearing offers two advantages over a conventional cylindrical roller bearing. The first advantage is higher load capacity and the second is longer lifetime.
(High quality only factory price, want to consider it)

The main reason for the greater load capacity of the spherical roller bearing is that it can withstand both axial and radial loads. In addition, the contact surfaces are spherical, which allows for a much larger contact area than in other types of bearings. This means that these

bearings can handle heavy applications.

Spherical roller bearings also have superior fatigue resistance compared to other types of bearings, including ball bearings and cylindrical roller bearings.

• Accommodate misalignment
• High load carrying capacity
• Relubrication features
• Low friction and long service life
• Increased wear resistance

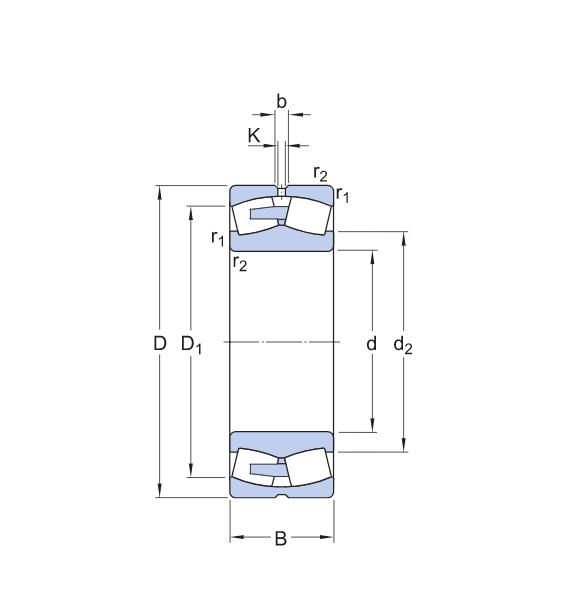

  Dimensions

  d	300 mm	Bore diameter
  D	500 mm	Outside diameter
  B	160 mm	Width
  d2	≈360 mm	Shoulder diameter of inner ring
  D1	≈434 mm	Shoulder/recess diameter of outer ring
  b	16.7 mm	Width of lubrication groove
  K	9 mm	Diameter of lubrication hole
  r1,2	min.5 mm	Chamfer dimension

Abutment dimensions

Abutment dimensions

Calculation data

• The customer who selected 23160CA also selected


  HPV75	A8V107	A8V86	SG04	K3V63BDT	K3V112BDT
  HPV55	K5V140	A8V080	SG08	K3VL80DTP	K3V63DT
  HPV90	A8V55	A8V107	SG12	K5V80DTP	K3V63BDT
  HPV95	A10FD28	A8V115	SG20	K3V112DT	HPV35
  HPV95N	A10VD43	A8V0107	SG23	K3V112DP	HPV75
  HPV160	k5v200	A8V0140	M2X120 M5X130	K3V112BDP	HPV95
  HPV132	AP12	A8V0160	M2X150	K3V140DT	K3V180
  HPV140	AP2D25	A8V0200	M5X180	K3V180DT	k3v140
  HPV165	AP2D18	A10VO28	M2X63	K5V140DTP	HPV102 A8V160
  K5V200DTH	HPV132	PVB92	VRD63	K5V160DTP	HPV118
  K5V200DPH	HPV140	PSVD2-27	SPK10/10	K5V160DP

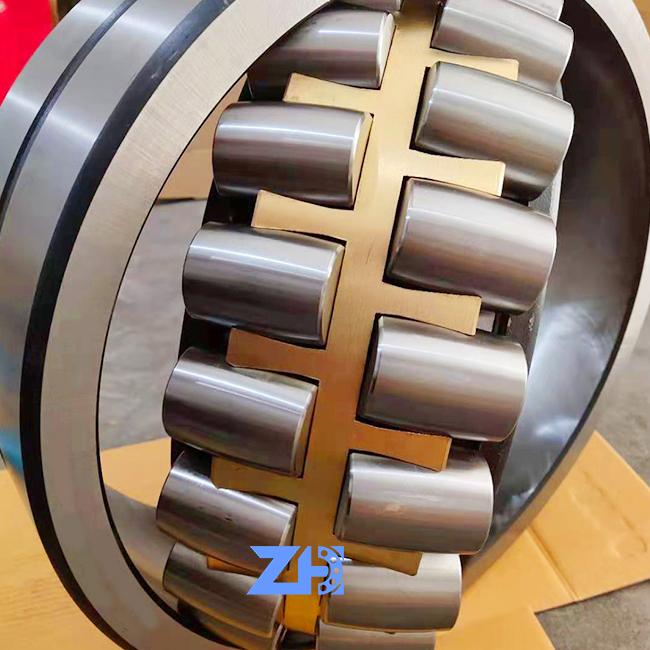

  Picture show
