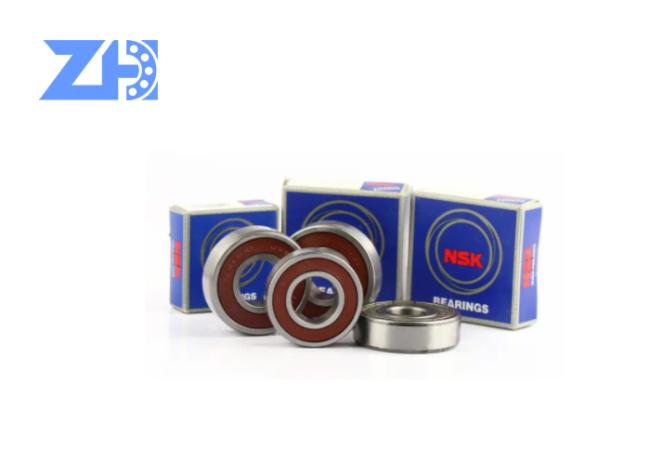

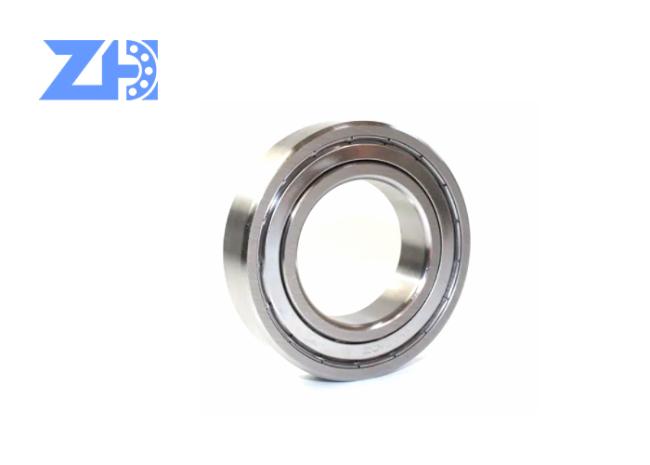

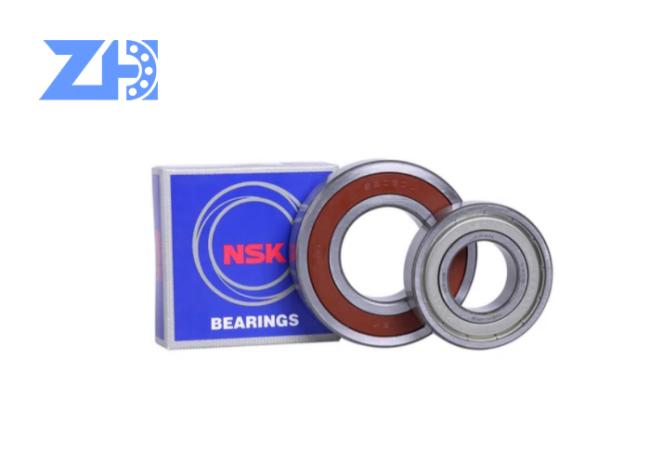

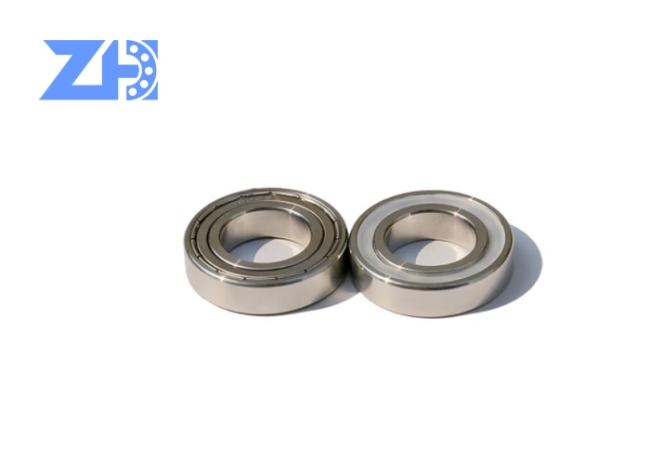

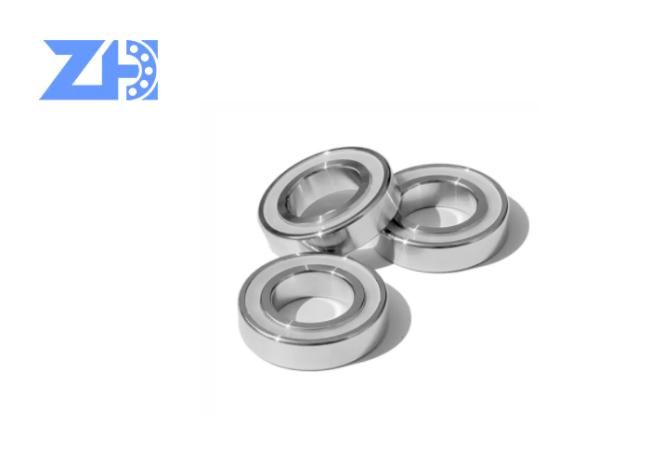

NSK 6800 6801 6802 6803 6804 6805 6806 6807 Customize Deep Groove Ball Bearing

Thin Section Ball Bearings were developed for appliexcavatorions where space limitations are of the utmost importance. As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course this comes at a price by compromising load capacities. However, these bearings can still accommodate a relatively light radial thrust or combined loads

The ball bearing used in this appliexcavatorion is having thin section due to smaller width and outer diameter.

JRDB’s precision thin section bearing line offers high accuracy and low profile design in standard stainless steel or chrome steel configurations. This line includes deep groove and angular contact configurations with special features available to meet specific appliexcavatorion requirements.

Design Attributes:

• Precision tolerances – meet ABEC 5F (ISO P5) or ABEC 7F (ISO P4) for high running accuracy.

• Material selection – standard offerings include 440C stainless steel and 52100 chrome steel.

• Superfinished raceways – provide a smooth surface finish to reduce internal friction and vibration.

• High quality ball complement – grade 5 or better balls optimize smooth rolling performance.

• Retainers – various configurations and materials to meet performance needs.

Appliexcavatorions:

• Precision robotic joints

• Semiconductor equipment and measuring systems

• Radar and microwave equipment

• Solar array panels

• Guidance systems

• Medical Imaging equipment

Natural package:

White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements

Delivery time:3-5 days or according to our customer’s order quantity









Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.

Miniature deep groove ball bearings refer to metric series with an outer diameter of less than 9mm; inch series, all kinds of bearings with an outer diameter of less than 9.525mm! The main materials are carbon steel, bearing steel, stainless steel,plastics, ceramics, etc. The smallest inner diameter can be 0.6mm, and the general inner diameter is 1mm.

The main purpose is suitable for all kinds of industrial equipment, small rotary motors and other high-speed and low-noise fields,such as: skateboards, ice skates, office equipment, micro motors, instrumentation, laser engraving, small clocks, soft drives,pressure rotors, dental drills, hard disk motors , Stepper motors, video recorder drums, toy models, computer cooling fans,currency counters, fax machines and other related fields.

Our products use high-quality raw materials, GCR15 bearing steel forging, high-precision CNC machine polishing, durable, built-in high-strength rolling elements. It has better load carrying capacity, and the steel ball is more wear-resistant. It has undergone multiple inspections and calculations before leaving the factory to ensure the quality of the bearing.
