HYUNDAI Excavator Final Drive Bearing XKAH-00025 XKAH00025 Angular Contact Bearing

Price Negotiable
Price: Negotiable
MOQ: 1 PCS
Delivery Time: 2-5 work days
Brand: QIEAL ZH
Product Description



Hyundai final drive bearings XKAH-00025 XKAH00025





XKAH-00025bearings are used in the final drive Bearing system of HYUNDAI heavy machinery equipment:

XKAH-00025 HYUNDAI BEARING parts

Apply to R140LC-7, R210LC7, R210NLC7



P/N



XKAH-00025

Material: GCR15
i/d mm O/D mm
H mm Brand:

ZHZB



Precision P0 , P6 , P5 Structure: Angular contact bearing



Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%



Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

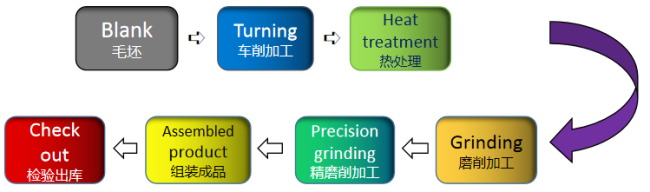

Production Process

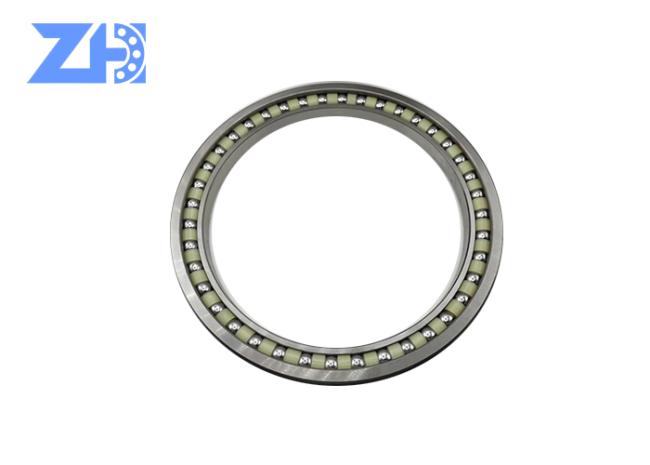

Product Photos

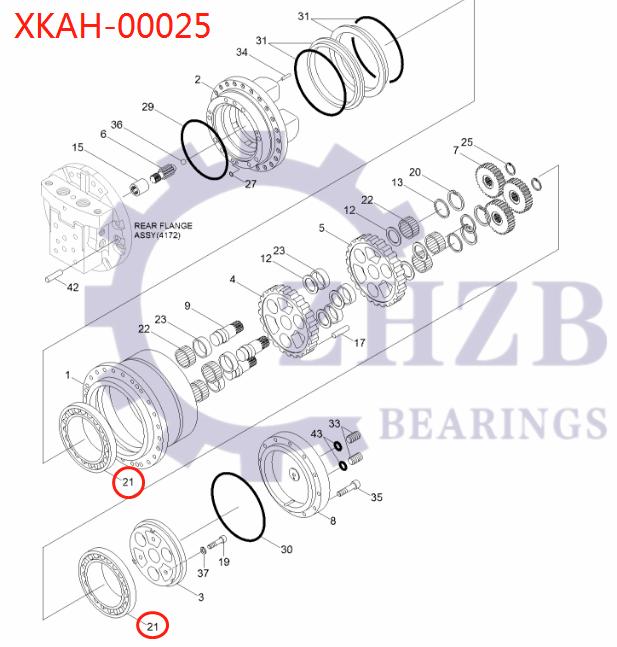

Any other parts for the final drive gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.



HYUNDAI PARTS



Pos. Part No Qty Parts name Comments
*. XKAH-00112 [1] REDUCTION GEAR SEE 4150
*. XKAH-00312 [1] REDUCTION GEAR SEE 4150
*. XKAH-00452 [1] REDUCTION GEAR SEE 4310
*. XKAH-00312 [1] REDUCTION GEAR SEE 4150
1. XKAH-00001 [1] HUB SEE 4150
1. XKAH-00311 [1] HUB SEE 4150
N1. XKAH-00451 [1] HUB SEE 4310
1. XKAH-00311 [1] HUB SEE 4150
*-1. XKAH-00002 [1] SPINDLE KIT
*-11. XKAH-00003 [1] SPINDLE ASSY
N2. XKAH-00004 [1] SPINDLE
N3. XKAH-00005 [1] HOLDER-FLANGE
19. XKAH-00006 [3] BOLT-SOCKET
34. XKAH-00007 [6] PIN-PARALLEL
37. XKAH-00008 [3] WASHER-PLAIN
*-2. XKAH-00371 [1] RV GEAR ASSY
*-21. XKAH-00010 [1] RV GEAR KIT
4. XKAH-00011 [1] RV GEAR-A
5. XKAH-00012 [1] RV GEAR-B
9. XKAH-00013 [3] SHAFT-CRANK
12. XKAH-00014 [6] SPACER
22. XKAH-00015 [6] BEARING-T/ROLLER
23. XKAH-00016 [6] BEARING-NEEDLE
6. XKAH-00017 [1] INPUT GEAR
*-3. XKAH-00018 [1] GEAR-SPUR KIT
7. XKAH-00019 [3] GEAR-SPUR
8. XKAH-00020 [1] COVER
13. @ [3] PIECE-DISTANCE
13-1. XKAH-00850 [AR] PIECE(3.75-3.80T)
13-2. XKAH-00851 [AR] PIECE(3.80-3.85T)
13-3. XKAH-00852 [AR] PIECE(3.85-3.90T)
13-4. XKAH-00853 [AR] PIECE(3.90-3.95T)
13-5. XKAH-00854 [AR] PIECE(3.95-4.00T)
15. XKAH-00022 [1] COUPLING
17. XKAH-00023 [24] PIN
20. XKAH-00024 [3] RING-SNAP
21. XKAH-00025 [2] BEARING-BALL
25. XKAH-00026 [3] RING-SNAP
K27. XKAH-00027 [2] O-RING
K29. XKAH-00028 [1] O-RING
K30. XKAH-00029 [1] O-RING
*-4. XKAH-00372 [1] FLOATING SEAL KIT
KN31 XKAH-00031 [2] SEAL-FLOATING
33. XKAH-00032 [3] PLUG-RO
35. XKAH-00110 [12] BOLT-SOCKET
36. XKAH-00033 [1] BALL-STEEL
42. XKAH-00034 [2] PIN-PARALLEL
K43. XKAH-00035 [3] O-RING
N. @ [AR] NOT SUPPLIED PARTS
K. XKAH-00111 [1] SEAL KIT



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.




Why choose us?

✬1.Trusted Product



✬2.Advanced Technology



✬3.Reliable Service



✬4.Competitive price
