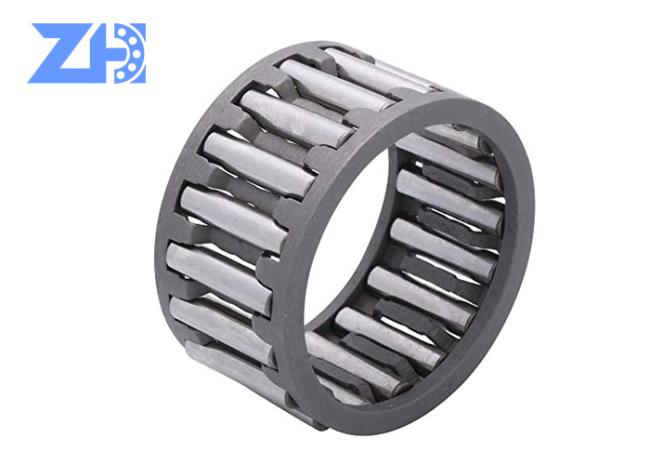

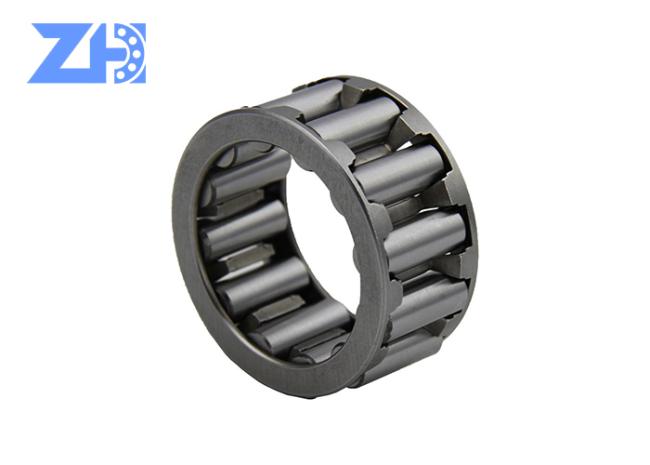

TZ200B1023-00 Bearingradial Needle Roller And Cage Sets TZ200B1023-00 0 Bearings

Overview

Assembly The needle roller and cage assembly is an independent rolling element. Each of the needle rollers is exactly guided and caged by the cage. It has the highest load capacity and high rigid design in the smallest structure and space. The large distance between two cage guiding surfaces ensures accurate guidance of the needle roller and cage assembly.
Assembly The needle roller and cage assembly are suitable for the loexcavatorion where the shaft and housing bore are acted as the raceway. Under the geographic accuracy shaft and housing bore raceway, the highest rotation accuracy can be obtained.
Clearance The working clearance at the bearing loexcavatorion is dependent on the tolerance of the inner and outer races, the needle roller difference and the working temperature.

Classifiexcavatorion

Assembly As for the radial needle and retainer assembly of model k, kd, this bearing type has only one radial needle and retainer assembly assembly. With the small outer diameter size, it is suitable for parts, where radial sizes are limited, especially used for bearing radial load. K zw model, k zwd radial needle and retainer assembly is double row radial needle and retainer assembly.
As for this type of bearing, since it has no collar, the surface of the newspaper and the surface of the hole in the housing are directly acted as the bearing surface with surface hardness HRC 60 and surface roughness Ra no more than 0.63 m.
Order in order to satisfy the main machine requirement, this type of bearing can be made into split bearing, convenient for assembling. Model kd represents as single row split bearing and model k zwd represents as double row split bearing.
Roller (1-1) single row radial needle roller k and cage assembly
• (1-2) K...ZW double-row radial needle roller and cage assembly
• (1-3) k... D
• (1-4) K...ZWD Single Row Partial Radial Needle Roller and Cage Assembly Radial Needle Roller and Cage Assembly
