Indoor Mobile Phone Signal Booster 20dBm Single B43 3600 - 3800MHz 5G Signal Amplifier
20dBm Single B43 3600-3800MHz Indoor 5G Mobile Phone Signal Booster Manufacturer
Descriptions of mobile phone amplifier:
Sacontelecom is a lead manufacturer of mobile phone signal boosters in China.
This new 5G indoor signal repeater can supports 3400-3600mhz, 3600-3800mhz. It is a pico signal repeater, output power is 20dBm, 70dB gain.
LCD display on the booster, support gain adjustable. This indoor 5G mobile repeater supports some indoor antennas, it can cover about 500-1000 square meters. Welcome to enquiry more details.
Features of mobile signal extender:
1. Boost 5G signals;
2. Built-in 5G Dynamic TDD Sync Detection Module, automatic completion of 5G wireless network cell search and wireless signaling processing;
3. Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously;
4. Auto Isolation check between service and donor antennas;
5. Smart mode to auto-adjust gain according to the isolation and signal level received by donor site;
6. 20dBm power, 70dB gain
Specifications of cell phone signal booster:
| Items | Specifications | |
| System | SA-20-5G | |
| Frequency Range | Uplink | 3400~3600MHz,3600-3800MHz |
| Downlink | 3400~3600MHz,3600-3800MHz | |
| Working Bandwidth | 100MHz Fixed Bandwidth(Movable Center Frequency Via Software) | |
| Maximum Output Power | Uplink | 17±2dBm |
| Downlink | 20±2dBm | |
| Maximum Gain | 70±3dB | |
| Manual Gain Control | 31dB in Step of 1dB | |
| AGC Range | ≥ 20dB | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm | |
| 1GHz~12.75GHz: ≤ -30dBm | ||
| EVM | ≤ 4.5% | |
| VSWR | ≤2.0 | |
| Noise Figure | ≤ 5dB | |
| Group Delay | ≤ 5μs | |
| I/O Impedance | 50Ω | |
| RF Connector | 2xN-Female | |
| Power Supply | Input: AC100~ 240V | |
| Power Consumption | ≤30W | |
| Dimensions | 188*265*68mm | |
| Weight | ≤ 5 kg | |
| Alarm Monitoring System | Alarm for Uplink Self-oscillation | |
| Isolation Detection | Isolation Check During Boot Time | |
| LED Indicator | Power Supply, Alarm, State | |
| Operating Temperature | -10 ~ +45 °C | |
| Application | Indoor(IP30) | |
| Relative Humidity Range | ≤95%(Non Condensing) | |
| Mounting | Wall Mounting | |
| Local Control | Via USB Interface | |

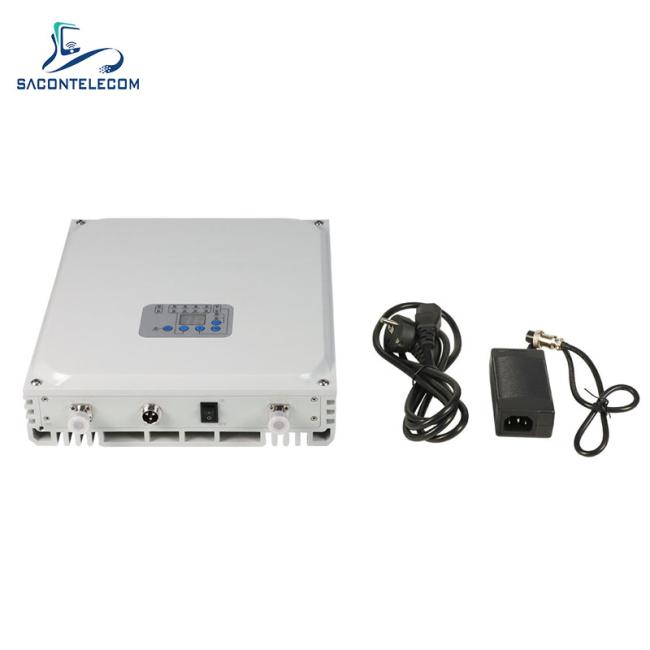

Standard Package of cell phone repeater:
AC90-264V, DC power supply adapter 1PCS
AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
Installation kit 1PCS
User manual 1PCS
Application of cellphone signal amplifier:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
