316 Stainless Steel 0.2KG 8mm Square Glass Clamp
316 Stainless Steel Glass Clamp Clip Bracket for Handrail Balustrades Stair Post
The Glass Clamps are suitable for Indoor and Outdoor 8-12 mm Glass . Made of high quality 304/ 316 Stainless Steel material, More Strong and Sturdy, Which Is Rustproof, Waterproof and Heat-resisted, Not Easy to Damage. The manufacture process flow is investment casting, machining and mirror polishing.The glass clamps can be used over any length of installation as well as slopes and staircases, simple to install using M8 X 20 stainless steel Hex Head Cap Screw.
1: Stainless steel Squaretype glass clamp details
| Product Name | 304/316 stainless steel Squaretype glass clamp |
| Processed | investment casting, machining and mirror polishing |
| Material | Stainless Steel SUS304 or SUS316 |
| Size | 65*43*24 mm (H x L x T/D), 53*33*20 mm (H x L x T/D) 45*44*25 mm (H x L x T/D) 65*43*24 mm (H x L x T/D) or customized |
| Weight | 0.2-5.3 kg |
| Application | Indoor and Outdoor 8-12 mm Glass flat surface fixing |
| Casting tolerance | Investment casting ISO 8062-3 DCTG 5 |
| Casting Surface condition | Ra3.2 um |
| Brand | Ningbo Suijin |
| Delivery | 2-45 woring days |
2: Stainless steel Squaretype glass clamp Feature:
Strong material with stainless steel
Rust-free with stainless steel material and chroming finish
Satin Brushed Finish or Chrome Polished Finish,Looks elegance with satin polished finish
Adjustable for its suitable glass thickness with its rubber layers and the micro-adjusting screw.
Easy to install, Comes with the Hexagon Diver, It Is Easy to Loosen or Tighten Screws.
Adjustable , With The Rubber Layers and Micro-adjusting Screw, It's Suitable for 8-12mm Thickness of Glass.
Safe, The Rubber Gasket Can Be Stably and Safely Secured To Fixing in The Glass, Good Ideal for Fixing Glass of Balustrade, Staircase, Handrail, Etc.
3. Stainless steel material selection
D-shaped Stainless Steel Bracket for Glass Balustrade for flat surface fixing (e.g. square posts, wall, floor), SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

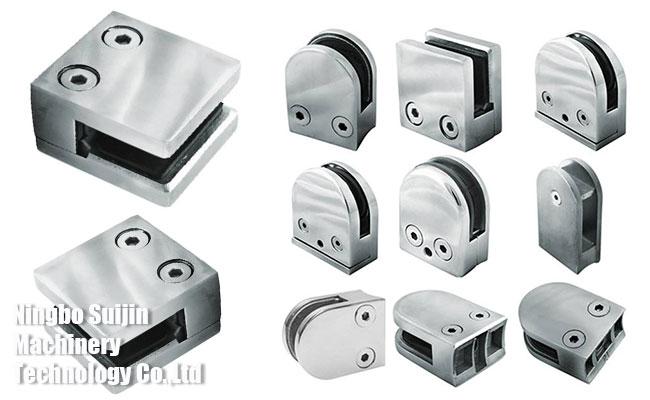

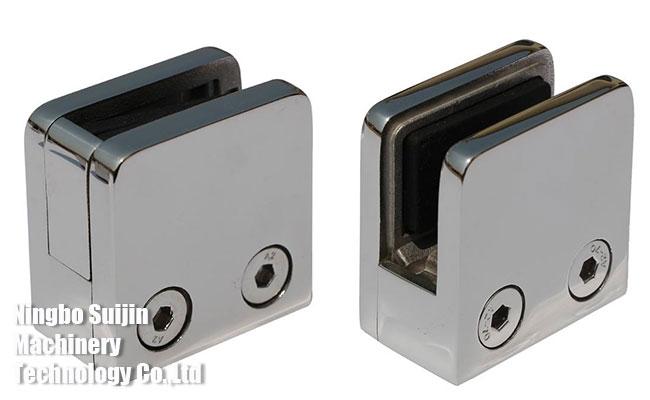

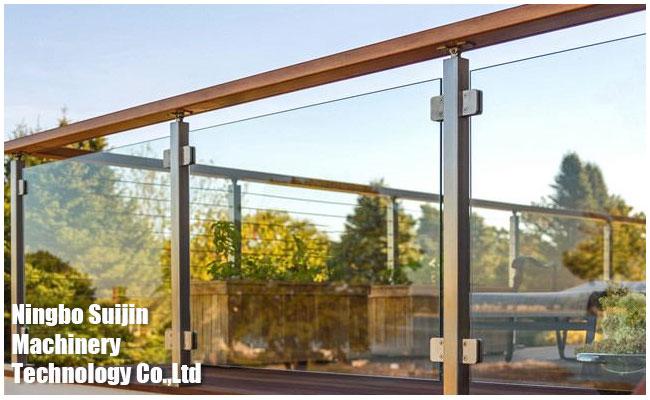

4: Stainless steel Squaretype glass clamp Picture show
The Solar mounting accessories casting adaptor is applicate for solar system
5. How to install:
1.Use a hexagon driver to loosen screws ( the screw driver is included in the package)
2.Insert the glass into the gap and tighten screws with the screw driver.
3.The micro-adjusting screw is optional for use to make the connection tighter.
Our invertment precision casting
Process flow:
Wax Injection--Make Wax pattern and repair--Inspection--Shell Making--De-waxing--Roasting Shell and Melting Steel--Composition Inspection--Pouring--De shelling--Cutting and Grinding the pouring gate--Inspection--Heat treatment--Shotblasting--Machining--Anti-Corrosion--Final Inspection--Shipping
Precision Casting Part Packing
