A12v190pzl engine parts chidong brand jinan diesel engine

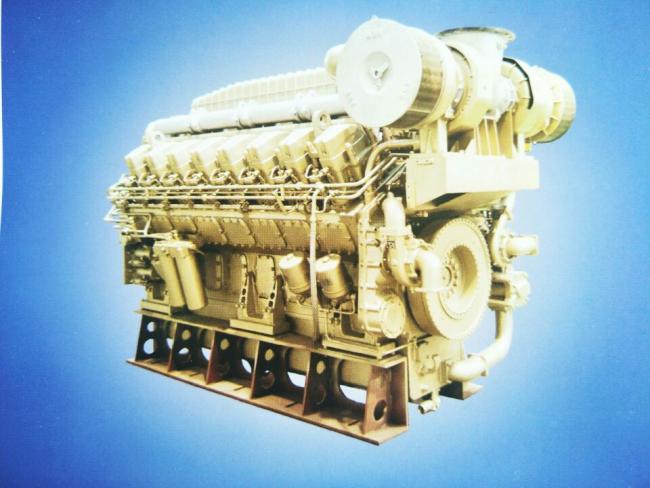

3000 Diesel Engine (600~1200kW)
· Price: - /
· Place of Origin:Shandong China (Mainland)
· Fuel:Diesel
· Cold Style:water cooling/inlet air inter cooli...
· Start:Air/electric motor starting
· Related website:www.jichaigreenpower.com
Item specifics
Place of Origin: Shandong China (Mainland)
Fuel: Diesel
Cold Style: water cooling/inlet air inter cooli...
Start: Air/electric motor starting
Usage: electric drilling rigs(4000-7000m)/mud ...
Model Number: 3000 Diesel Engine
Cylinder: 12, 8-cylinder V shape 60° angle
Payment Terms: L/C,T/T
Brand Name: chidong
Stroke: 4 Stroke
Supply Ability: 400 Set/Sets per Month
Specifications
3000 Diesel Engine (600~1200kW)
Compact in structure and easy in operation
Various overall dimensions are optional
3000 Diesel Engine (600~1200kW)
Features of 3000 Diesel Engine:
1. Structure type: 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
2. Number and arrangement of cylinders: 12 or 8-cylinder, V shape, 60° angle
3. Net weight: 7200~11000Kg
4. Compact in structure and easy in operation
5. Various overall dimensions are optional
Applications:
You can find this powerful engine on the job in many applications, providing power for electric drilling rigs(4000-7000m), mud pumps and fire pumps. Besides, it can also be matched with diesel generating sets to form a power station.
Specifications of 3000 Diesel Engine
| Model | Rated power(kW) | Rated rpm (r/min) |
Fuel consumption (g/kw.h) |
Oil consumption (g/kw.h) |
Overall dimensions (mm) |
Net weight (kg) |
| A12V190ZL | 1200 | 1500 | 205 | ≤1.0 | 2950x1980x2206 | 9300 |
| A12V190PZL | 4130x2250x2738 | 11000 | ||||
| A12V190ZL-3 | 1100 | 1300 | 2950x1980x2206 | 9300 | ||
| A12V190PZL-3 | 4130x2250x2738 | 11000 | ||||
| A12V190ZL-1 | 1000 | 1200 | 2950x1980x2206 | 9300 | ||
| A12V190PZL-1 | 4130x2250x2738 | 11000 | ||||
| A12V190ZL-2 | 900 | 1000 | 2950x1980x2206 | 9300 | ||
| A12V190PZL-2 | 4130x2250x2738 | 11000 | ||||
| A8V190ZL | 900 | 1500 | 205 | ≤1.4 | 2300x1774x2173 | 7200 |
| A8V190PZL | 3380x2250x2738 | 9100 | ||||
| A8V190ZL-3 | 760 | 1300 | 2300x1774x2173 | 7200 | ||
| A8V190PZL-3 | 3380x2250x2738 | 9100 | ||||
| A8V190ZL-1 | 700 | 1200 | 2300x1774x2173 | 7200 | ||
| A8V190PZL-1 | 3380x2250x2738 | 9100 | ||||
| A8V190ZL-2 | 600 | 1000 | 2300x1774x2173 | 7200 | ||
| A8V190PZL-2 | 3380x2250x2738 | 9100 |
Technical Parameters
| Structure type | 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling |
| Number and arrangement of cylinders | 12, 8-cylinder V shape 60° angle |
| Diameter of cylinder(mm) | 190 |
| Stroke(mm) | 215 |
| Total displacement(L) | 73.15/48.77 |
| Compression ratio | 14.5:1 |
| Exhaust temperature() | ≤650 |
| Outlet temperature() | ≤90 |
| Oil temperature(oil sump,) | ≤95 |
| Steady speed change ratio(%)- | ≤5 |
| Cooling mode | Pressurized water cooling |
| Lubrication mode | Pressure and spray lubrication |
| Starting mode | Air/electric motor starting |
