Unicomp AX9180 180kV Microfocus Electronics X Ray Machine With FPD Oblique

Price Negotiable

Price: can negotiate

MOQ: 1 Set

Delivery Time: 30 days

Brand: Unicomp

Product Description

Unicomp AX9180 180kV Microfocus Electronics X-Ray Machine With FPD Oblique

AX9180 180kV microfocus X-ray system with FPD oblique view and 360° rotation table for comprehensive electronic components inspection.

Key Features

180KV 10μm X-Ray tube for precise imaging
High-speed, high-resolution FPD with millions of pixels
1000X magnification with high-definition real-time imaging
One-button operation with 2.5D image display
Off-line programming function with navigation mode detection
7-axis linkage with 60-degree tilt detection capability

Industry Applications

SMT, BGA, CSP, Flip Chip, LED Detection
Semiconductor and Packaging Components
Battery Industry and Electronic Components
Auto Parts and Photovoltaic Industry
Aluminum Die-casting and Moulding Plastic
Ceramics and Other Special Industries

Technical Specifications

Parameter Category	Parameter	Specification
System Parameters	Size	2000(L) x 2030(W) x 2040(H) mm
	Weight	5300 kg
	Power	220AC/50Hz
	Power Consumption	2.2kW
X-ray Tube	Type	Closed
	Max. Voltage	180kV
	Max. Power	90W
	Spot Size	10μm
X-ray System	Intensifier	FPD
	Monitor	24" HD
	Geometric Magnification	12.3X
Detection Region	Max. Loading Size	Φ750mm
	Max. Inspection Area	129mm x 129mm
	X-ray Leakage	<1μSv/h

Customer Support Services

Product project analysis and detection solutions
Complimentary sample detection testing
Professional detection solution development
Expert jig design services
Shipping and delivery information verification
One-year warranty with lifetime maintenance support
24-hour email response for technical inquiries

Frequently Asked Questions

How is the machine packaged for delivery?

All X-ray inspection machines are packed in standard strong wooden cartons to ensure safe shipping.

What warranty and after-sales service do you provide?

We offer 1-year warranty for spare parts and lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support.

Do you provide training for visitors to your factory?

Yes, we warmly welcome factory visits and provide complimentary training sessions for all visitors.

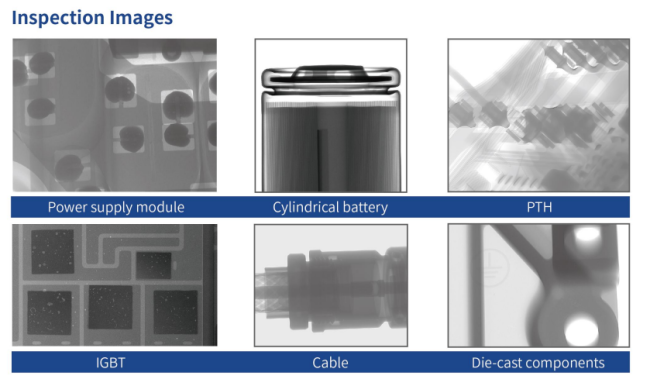

Images
